- Part Number BG77LA-64-SGNS
- Manufacturer Quectel
- Pin Count 94
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - BG77LA-64-SGNS-6
- Released Date Dec 21, 2023
- Last Modified Date Dec 22, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
BG77LA-64-SGNS Details
-
Manufacturer Part Number:
BG77LA-64-SGNS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
LGA-94
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Quectel Wireless Solutions Co Ltd
-
Additional Feature:
Extended Temperature Range also available -40 to 85
-
JESD-30 Code:
R-XBGA-N94
-
Length:
14.9 mm
-
Number of Functions:
1
BG77LA-64-SGNS Frequently Asked Questions (FAQs)
-
The maximum power consumption of the BG77LA-64-SGNS module is around 2.5W, but it can vary depending on the operating mode and usage scenario.
-
To configure the BG77LA-64-SGNS module for low power consumption, you can use the AT command set to configure the module's power mode, such as setting the module to sleep mode or power-saving mode. You can also adjust the transmission power and data transmission frequency to reduce power consumption.
-
The maximum data transmission speed of the BG77LA-64-SGNS module is up to 5.5 Mbps in LTE Cat M1 mode and up to 1 Mbps in NB-IoT mode.
-
To integrate the BG77LA-64-SGNS module with your application, you will need to develop a software application that communicates with the module using the AT command set. You will also need to ensure that your application is compatible with the module's operating frequency and data transmission protocol.
-
The operating temperature range of the BG77LA-64-SGNS module is -40°C to +85°C.
Trust Checks
Community Provided
System Verified
Community Approved
BG77LA-64-SGNS Overview

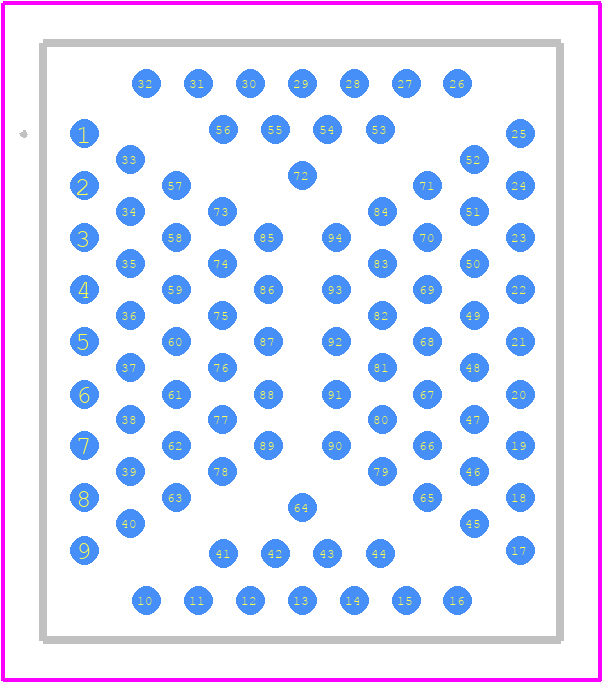

Use the download button to access the BG77LA-64-SGNS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BG77L,
or try a keyword search, such as Cellular Telephone Circuits
