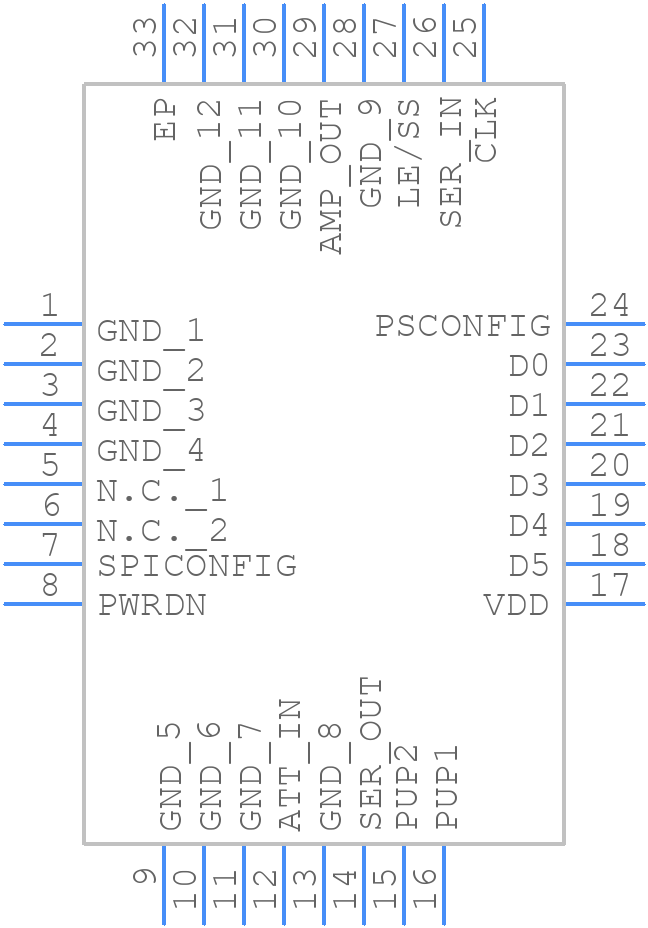

BGA7204 - NXP

BGA7204 Details

• Manufacturer Part Number:

  BGA7204

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  HVQFN-32

• Country Of Origin:

  Mainland China, Taiwan

• HTS Code:

  8542.33.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• JESD-30 Code:

  S-PQCC-N32

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.85 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Telecom IC Type:

  BASEBAND CIRCUIT

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
