Part Image

BGSA11GN10 - Infineon

Description: Supply voltage: 1.8V to 3.6V, Control voltage: 1.35V to 3.3V (control high), 0.1 to 5.0GHz coverage, 400 µm pad pitch.

Download BGSA11GN10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

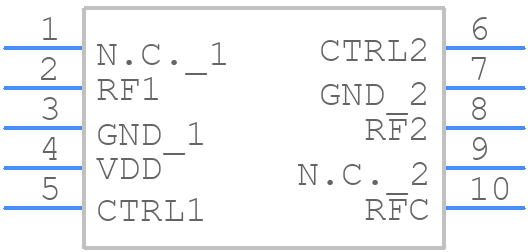

BGSA11GN10 - Infineon - PCB symbol
click to zoom
PCB Footprints
BGSA11GN10 - Infineon PCB footprint - Other - Other - BGSA11GN10-1
click to zoom
3D Models
BGSA11GN10 - Infineon - 3D model - Other - BGSA11GN10-1
click to zoom

BGSA11GN10 Details

  • Manufacturer Part Number:

    BGSA11GN10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-08

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BGSA11GN10 Overview

Use the download button to access the BGSA11GN10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGSA1, or try a keyword search, such as Other Telecom ICs
