BGT60LTR11AIPE6327XUMA2 - Infineon

Description: IC RF TxRx + MCU General ISM > 1GHz ISM 60GHz 42-BGA

Download BGT60LTR11AIPE6327XUMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

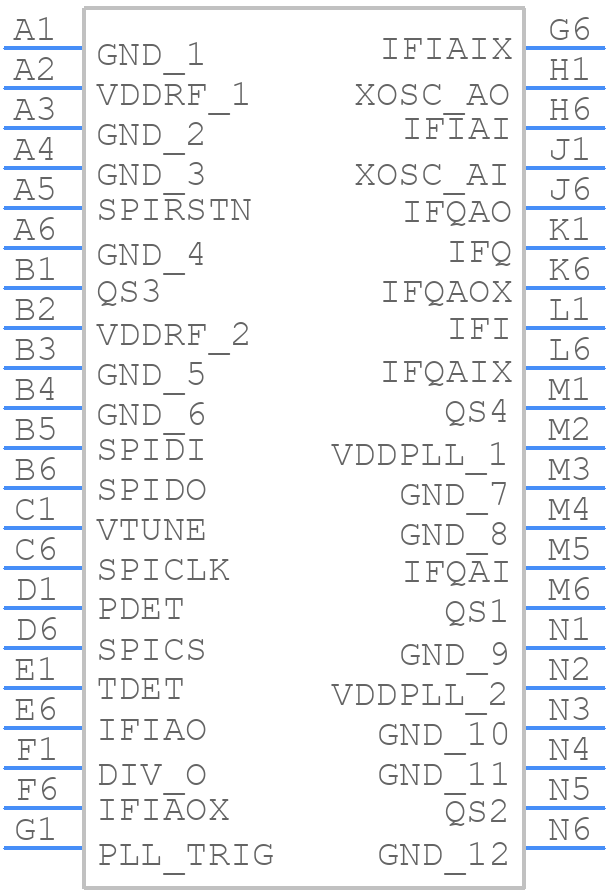

BGT60LTR11AIPE6327XUMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
BGT60LTR11AIPE6327XUMA2 - Infineon PCB footprint - Other - Other - BGT60LTR11AIPE6327XUMA2-7
click to zoom
3D Models
BGT60LTR11AIPE6327XUMA2 - Infineon - 3D model - Other - BGT60LTR11AIPE6327XUMA2-7
click to zoom

BGT60LTR11AIPE6327XUMA2 Details

  • Manufacturer Part Number:

    BGT60LTR11AIPE6327XUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Body Breadth:

    3.3 mm

  • Body Height:

    0.29 mm

  • Body Length or Diameter:

    6.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    RADAR SENSOR

  • Supply Voltage-Max:

    1.6 V

  • Supply Voltage-Min:

    1.45 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

BGT60LTR11AIPE6327XUMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BGT60LTR11AIPE6327XUMA2 is -40°C to 125°C.
  • The BGT60LTR11AIPE6327XUMA2 uses a frequency hopping spread spectrum (FHSS) technique to minimize interference from other radar systems.
  • The typical current consumption of the BGT60LTR11AIPE6327XUMA2 is around 100 mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the BGT60LTR11AIPE6327XUMA2 is designed to meet the requirements of safety-critical applications, such as automotive and industrial systems, and is compliant with relevant safety standards.
  • The BGT60LTR11AIPE6327XUMA2 uses advanced signal processing algorithms to mitigate the effects of multipath interference, ensuring accurate and reliable distance measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BGT60LTR11AIPE6327XUMA2 Overview

Use the download button to access the BGT60LTR11AIPE6327XUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGT60, or try a keyword search, such as Other Sensors/Transducers
