BGU6101,147 - NXP

Description: NXP - BGU6101,147 - RF Amplifier, 40MHz to 4GHz, 10.5dB Gain, 0.8dB Noise, 1.5V to 5V, HXSON-6

Download BGU6101,147 Model

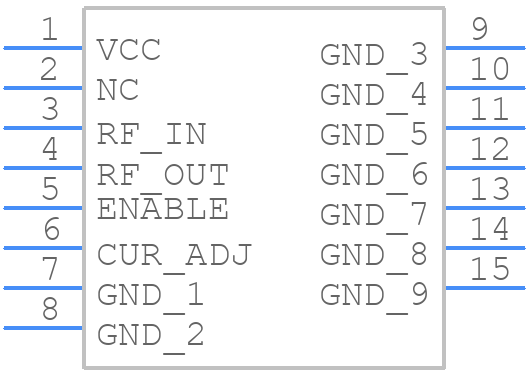

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BGU6101,147 - NXP PCB footprint - Other - Other - SOT1209
click to zoom
3D Models
BGU6101,147 - NXP  - 3D model - Other - SOT1209
click to zoom

BGU6101,147 Details

  • Manufacturer Part Number:

    BGU6101,147

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-1209, HXSON6, 6 PIN

  • Pin Count:

    SON

  • Manufacturer Package Code:

    SOT1209

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Construction:

    COMPONENT

  • Gain:

    4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Screening Level:

    IEC-60134

  • Supply Current-Max:

    10 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

BGU6101,147 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces as short as possible and use 50-ohm impedance matching.
  • Use a 1/4 wavelength monopole antenna or a dipole antenna with a balun. Ensure the antenna is impedance-matched to the BGU6101,147's 50-ohm output. Consider using a PCB antenna or a external antenna with a good radiation pattern.
  • The device can handle up to 30 dBm (1W) of input power. However, it's recommended to operate at a maximum of 20 dBm (0.1W) to ensure reliable operation and minimize the risk of overheating.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Avoid operating the device in high-temperature environments (>85°C) or in areas with high humidity.
  • Typical bias voltage is 3.3V to 5V, and bias current is 10-20 mA. Adjust the bias voltage and current according to your specific application requirements, ensuring the device operates within the recommended operating conditions.
