BGU6104,147 - NXP

Description: RF Amplifier LNA MMIC 4GHz 2.2dB

Download BGU6104,147 Model

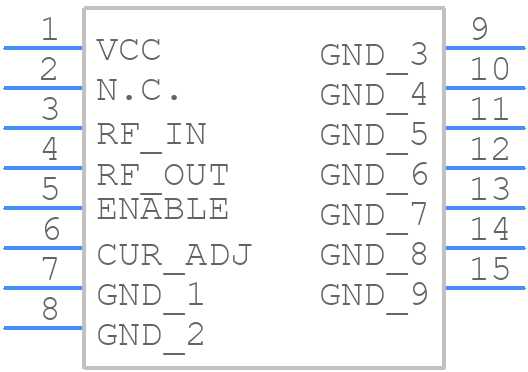

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BGU6104,147 - NXP PCB footprint - Other - Other - SOT1209
click to zoom

BGU6104,147 Details

  • Manufacturer Part Number:

    BGU6104,147

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-1209, HXSON6, 6 PIN

  • Pin Count:

    SON

  • Manufacturer Package Code:

    SOT1209

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Construction:

    COMPONENT

  • Gain:

    5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    40 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

BGU6104,147 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the BGU6104,147. Ensure a solid ground plane, keep the RF traces short and away from digital lines, and use a common mode filter to reduce EMI. NXP provides a recommended layout in the application note AN11561.
  • The BGU6104,147 is a highly sensitive receiver, and antenna design plays a critical role. Use a 50-ohm antenna, and consider a quarter-wave monopole or a dipole antenna. Optimize the antenna length and placement for your specific application, and ensure good impedance matching.
  • The BGU6104,147 can handle input powers up to +10 dBm. However, it's recommended to limit the input power to +5 dBm to ensure optimal performance and prevent damage to the device.
  • To achieve optimal noise figure and sensitivity, set the device to the recommended bias voltage (VCC = 2.7 V to 3.3 V) and current (ICC = 10 mA to 20 mA). Adjust the external matching network to optimize the input impedance for your specific frequency band.
  • The typical current consumption of the BGU6104,147 is around 15 mA, but it can vary depending on the operating frequency, bias voltage, and input power. Ensure your power supply can provide a stable voltage and sufficient current to meet the device's requirements.
