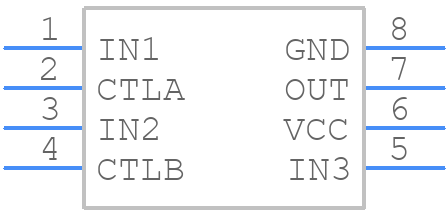

BH76330FVM-TR - ROHM Semiconductor

BH76330FVM-TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  ROHM recommends a 2-layer PCB with a thermal via array under the IC to dissipate heat efficiently. A minimum of 5 thermal vias with a diameter of 0.3mm, spaced 1.2mm apart, is recommended.
• How do I ensure stable operation with a single-supply voltage?
  To ensure stable operation with a single-supply voltage, ROHM recommends using a decoupling capacitor (e.g., 10uF) between the VCC and GND pins, and a 1uF capacitor between the VIN and GND pins.
• What is the maximum allowable power dissipation for this device?
  The maximum allowable power dissipation for the BH76330FVM-TR is 1.5W. Exceeding this limit may cause the device to overheat and malfunction.
• Can I use this device in a high-temperature environment?
  The BH76330FVM-TR is rated for operation up to 105°C. However, ROHM recommends derating the power dissipation by 1.5mW/°C above 85°C to ensure reliable operation.
• How do I troubleshoot issues with the device's output voltage regulation?
  To troubleshoot output voltage regulation issues, check the input voltage, output load, and decoupling capacitors. Ensure the input voltage is within the recommended range, the output load is within the specified current limit, and the decoupling capacitors are properly connected.
