ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure stable operation with a single power supply, ROHM recommends using a decoupling capacitor (e.g., 10uF) between the VCC and GND pins, and placing it as close to the IC as possible.
The maximum allowed voltage on the input pins is VCC + 0.3V, but it's recommended to keep it within VCC + 0.1V to ensure reliable operation.
ROHM recommends using ESD protection devices (e.g., TVS diodes) on the input pins to protect against electrostatic discharge. The device itself has some ESD protection, but additional protection is recommended for high-reliability applications.
The recommended operating temperature range for the BH76332FVM-TR is -40°C to +125°C, but it can operate up to +150°C with derated specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BH76332FVM-TR Overview

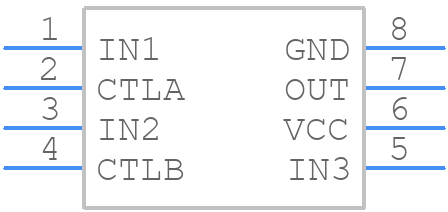

Use the download button to access the BH76332FVM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BH763,
or try a keyword search, such as Multiplexers or Switches
