Part Image

BH76362FV-E2 - ROHM Semiconductor

Description: Broadband Low Voltage Single-circuit Video Switchers

Download BH76362FV-E2 Model

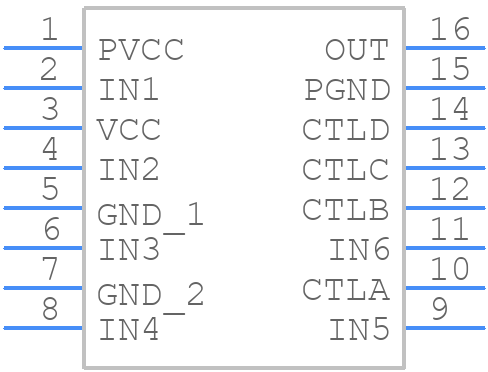

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BH76362FV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B16
click to zoom
3D Models
BH76362FV-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-B16
click to zoom

BH76362FV-E2 Details

  • Manufacturer Part Number:

    BH76362FV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.08

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BH76362FV-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation with a high-impedance input signal, add a 1kΩ to 10kΩ resistor in series with the input pin to reduce the impedance. Additionally, consider adding a 10nF to 100nF capacitor in parallel with the input pin to filter out noise.
  • The maximum allowed voltage on the EN pin is VCC + 0.3V. Exceeding this voltage may damage the device.
  • To prevent latch-up, ensure that the power supply voltage (VCC) rises and falls slowly (typically 10ms or more) during power-on and power-off transitions. Additionally, add a 10uF to 100uF capacitor between VCC and GND to filter out noise.
  • The recommended input signal amplitude is between 0.5V to 2.5V peak-to-peak. Signals with amplitudes outside this range may not be accurately detected or may cause false triggering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BH76362FV-E2 Overview

Use the download button to access the BH76362FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BH763, or try a keyword search, such as Multiplexers or Switches
