BHI260AP - BOSCH

Description: Multiple Function Sensor Modules Self-Learning AI sensor with integrated microcontroller and an IMU

Download BHI260AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

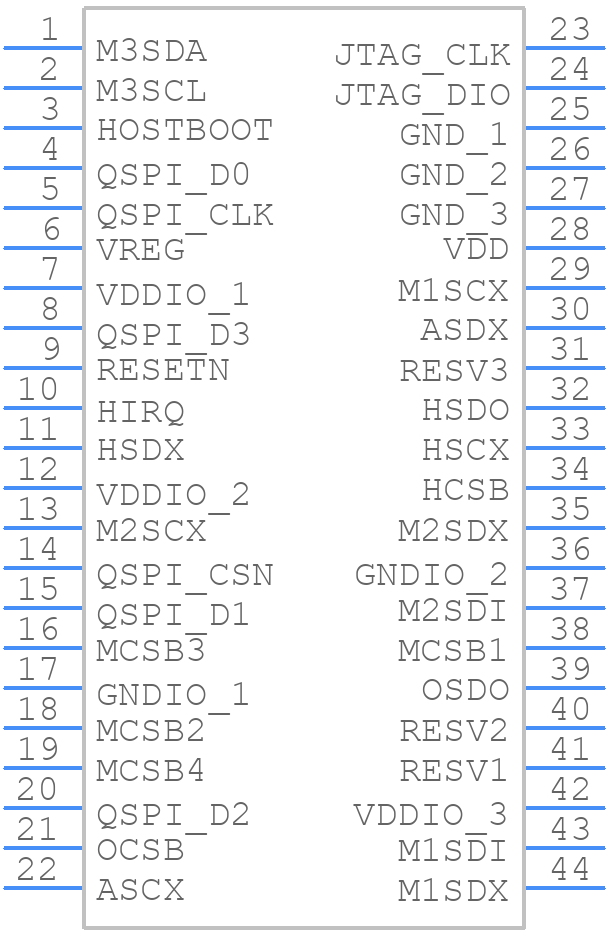

BHI260AP - BOSCH - PCB symbol
click to zoom
PCB Footprints
BHI260AP - BOSCH PCB footprint - Other - Other - BHI260AP-2
click to zoom
3D Models
BHI260AP - BOSCH - 3D model - Other - BHI260AP-2
click to zoom

BHI260AP Details

  • Manufacturer Part Number:

    BHI260AP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Manufacturer:

    Bosch Sensortec

  • YTEOL:

    3

  • Body Breadth:

    3.6 mm

  • Body Height:

    0.83 mm

  • Body Length or Diameter:

    4.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.36-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    SMART SENSORS

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

BHI260AP Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the BHI260AP can be found in the Bosch Sensortec application note AN011, which provides guidelines for optimal sensor performance and noise reduction.
  • The BHI260AP requires calibration for optimal performance. Bosch Sensortec provides a calibration guide and software tools to help with the calibration process. Additionally, the datasheet provides information on the calibration procedure.
  • The BHI260AP has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the sensor within a temperature range of 0°C to 60°C for optimal performance.
  • Yes, the BHI260AP is designed to operate in high-vibration environments. However, it's recommended to follow the mounting and installation guidelines provided by Bosch Sensortec to ensure optimal performance.
  • The BHI260AP communicates via I2C or SPI interfaces. Bosch Sensortec provides software development kits (SDKs) and example code for popular microcontrollers to help with integration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BHI260AP Overview

Use the download button to access the BHI260AP schematic symbol, PCB footprint, and 3D model.
