The recommended PCB layout involves keeping the input and output stages separate, using a star-ground configuration, and placing the device on a multi-layer board with a solid ground plane. For thermal management, a heat sink with a thermal resistance of 10°C/W or lower is recommended, along with a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
To ensure proper biasing, the BL1551 requires a stable input voltage, a low-impedance output, and a bias current of 10mA to 50mA. The recommended bias circuit involves using a voltage divider network with a 1kΩ to 2kΩ resistor and a 10nF to 100nF capacitor to filter out noise and ensure a stable bias voltage.
To prevent ESD damage, handle the device with an anti-static wrist strap or mat, and store it in an anti-static bag or container. During assembly, use an ESD-protected workstation and follow proper handling procedures. For added protection, consider using ESD-protection diodes or TVS devices on the input and output lines.
To troubleshoot common issues, start by verifying the PCB layout and thermal management. Check for proper biasing, input and output impedance matching, and ensure the device is operated within its recommended operating conditions. Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or instability. For overheating issues, verify the thermal management and heat sink design.
Recommended testing and validation procedures include verifying the device's electrical characteristics, such as gain, bandwidth, and noise figure, using a network analyzer or spectrum analyzer. Perform thermal testing to ensure the device operates within its recommended temperature range, and conduct reliability testing to ensure the device meets its specified lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BL1551 Overview

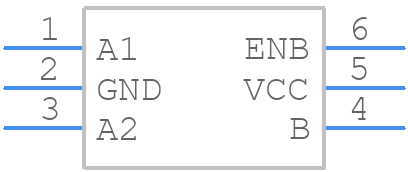

Use the download button to access the BL1551 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BL155,
or try a keyword search, such as Multiplexers or Switches
