BLA05-12W06 footprint, schematic symbol and 3D model by Bellnix

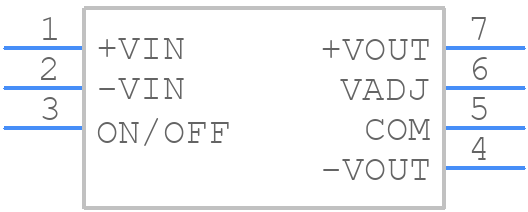

Symbol

click to zoom

PCB Footprints

BLA05-12W06 - Bellnix PCB footprint - Other - Other - BLA05-12W06

click to zoom

3D Models

BLA05-12W06 - Bellnix - 3D model - Other - BLA05-12W06

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BLA05-12W06
Part Number BLA05-12W06
Manufacturer Bellnix
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - BLA05-12W06
Released Date Jul 9, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BLA05-12W06 Details

Manufacturer Part Number:
BLA05-12W06
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT, METAL, PACKAGE-7
ECCN Code:
EAR99
Manufacturer:
Bellnix Co Ltd
Additional Feature:
ADDITIONAL -12 V AND +/- 15 V OUTPUT AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
9 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-MDMA-N7
Length:
20.3 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
METAL
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
9.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1.44 W
Trim/Adjustable Output:
YES
Width:
14 mm

BLA05-12W06 Frequently Asked Questions (FAQs)

A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 1 oz copper thickness and a 1.6 mm PCB thickness for optimal thermal performance.
Use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the pads, and use a gentle touch to avoid damaging the component. Ensure the soldering iron is cleaned regularly to prevent oxidation.
The maximum allowable voltage derating is 10% of the rated voltage. For example, if the rated voltage is 12V, the maximum allowable voltage derating is 1.2V (10% of 12V).
Yes, but ensure the component is properly sealed or coated to prevent moisture ingress. The operating humidity range is 20% to 80% RH, but it's recommended to keep the humidity level below 60% RH for optimal performance.
Store the component in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 60% RH. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.

Trust Checks

Expert Contribution

System Verified

Community Approved

BLA05-12W06 Overview

Use the download button to access the BLA05-12W06 schematic symbol, PCB footprint, and 3D model.
