Part Image

BLA31AG221SN4D - Murata Electronics

Description: Murata Power Solutions Ferrite Bead, 3.2 x 1.6 x 0.8mm (3216), 220Ω impedance at 100 MHz

Download BLA31AG221SN4D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

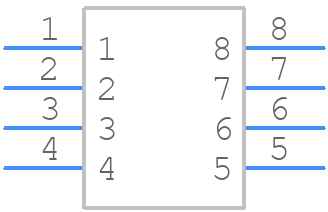

Symbol
BLA31AG221SN4D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
BLA31AG221SN4D - Murata Electronics PCB footprint - Other - Other - BLA31 L=3.2 W=1.6 T=0.8
click to zoom
3D Models
BLA31AG221SN4D - Murata Electronics - 3D model - Other - BLA31 L=3.2 W=1.6 T=0.8
click to zoom

BLA31AG221SN4D Details

  • Manufacturer Part Number:

    BLA31AG221SN4D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    EIA STD PACKAGE SIZE 1206, 8 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    ARRAY TYPE

  • DC Resistance-Max:

    0.25 Ω

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.8 mm

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    220 OHM Ω

  • Packing Method:

    TAPE

  • Rated Current:

    0.15 A

  • Terminal Finish:

    Tin (Sn)

  • Width:

    1.6 mm

BLA31AG221SN4D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BLA31AG221SN4D can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal assembly and reliability.
  • The BLA31AG221SN4D is a moisture-sensitive device and should be stored in a dry environment. If the component is exposed to moisture, it should be baked in a dry oven at 125°C for 24 hours to remove any moisture before assembly.
  • The maximum reflow temperature for the BLA31AG221SN4D is 260°C, and the component should not be exposed to temperatures above this limit to prevent damage or degradation.
  • Yes, the BLA31AG221SN4D is designed for high-frequency applications and has a self-resonant frequency of 2.2 GHz, making it suitable for use in RF and microwave circuits.
  • The ESR of the BLA31AG221SN4D can be determined by measuring the impedance of the component at a specific frequency using an impedance analyzer or a network analyzer. The ESR is typically specified in the datasheet, but it can also be calculated using the component's capacitance and inductance values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLA31AG221SN4D Overview

Use the download button to access the BLA31AG221SN4D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLA31, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
