BLC12-12W25 footprint, schematic symbol and 3D model by Bellnix

Symbol

click to zoom

PCB Footprints

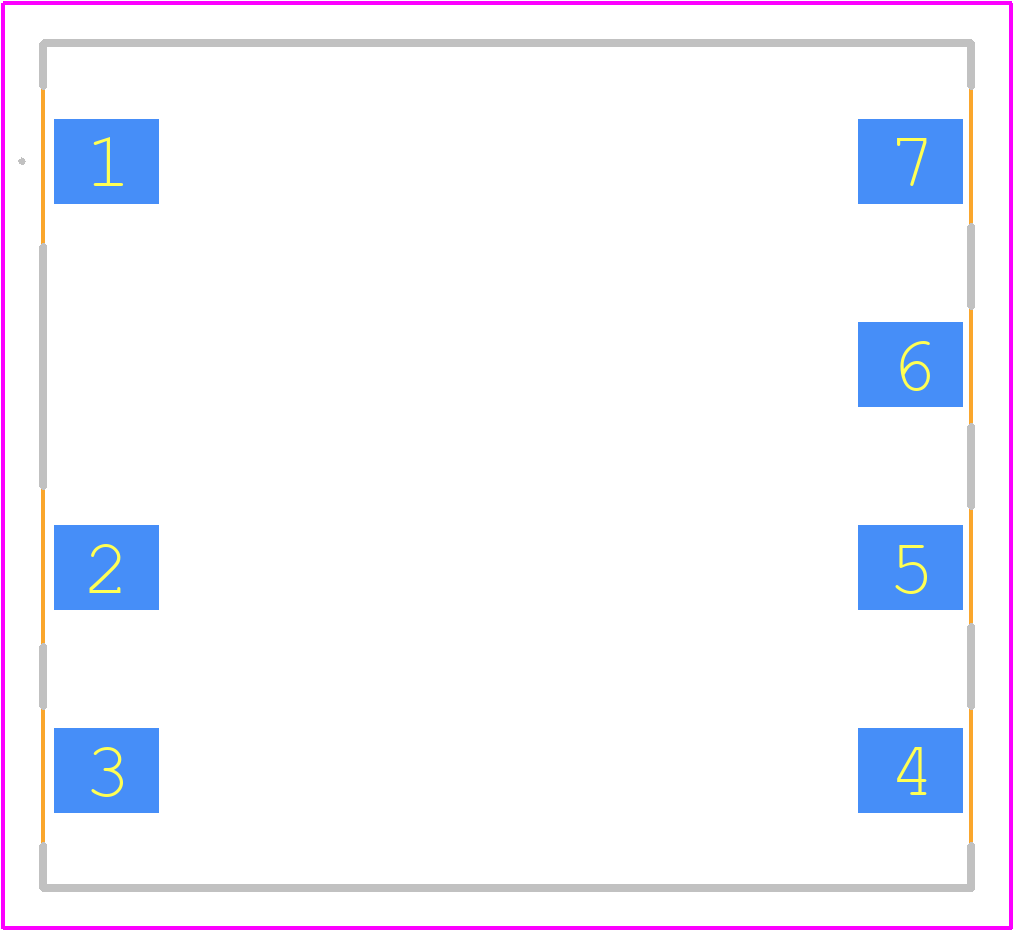

BLC12-12W25 - Bellnix PCB footprint - Other - Other - BLC12-12W25-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BLC12-12W25
Part Number BLC12-12W25
Manufacturer Bellnix
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - BLC12-12W25-2
Released Date Sep 15, 2026
Last Modified Date Sep 13, 2026 12:39 PM UTC
Pinout / Pin List Click Here (Member Only)

BLC12-12W25 Details

Manufacturer Part Number:
BLC12-12W25
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT, METAL, SMD-7
ECCN Code:
EAR99
Manufacturer:
Bellnix Co Ltd
Additional Feature:
ADDITIONAL 15V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-MDMA-X7
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
50 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
METAL
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
UNSPECIFIED
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
6 W
Trim/Adjustable Output:
YES

BLC12-12W25 Frequently Asked Questions (FAQs)

Bellnix recommends a PCB layout with a minimum of 2oz copper thickness, a thermal relief pattern under the device, and a minimum of 1mm clearance around the device for optimal heat dissipation.
Bellnix recommends using a soldering temperature of 250°C to 260°C, with a soldering time of 3 to 5 seconds. Additionally, a soldering iron with a tip temperature of 350°C to 380°C is recommended.
Bellnix recommends a maximum voltage derating of 10% to ensure reliable operation and to prevent damage to the device.
Yes, the BLC12-12W25 is designed to operate in humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity level 3 (MSL 3) to prevent damage during assembly and storage.
Bellnix recommends storing the BLC12-12W25 in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less.

Trust Checks

Community Provided

System Verified

Community Approved

BLC12-12W25 Overview

Use the download button to access the BLC12-12W25 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BLC12, or try a keyword search, such as Power Supply Modules
