BLG1X15 - Econ Connect

Description: Female header 1 x 15 pin straight height 8.5 mm pitch 2.54 mm

Download BLG1X15 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BLG1X15 model

Email notifications will be applied after download.

Send part feedback

Symbol

BLG1X15 - Econ Connect - PCB symbol

PCB Footprints

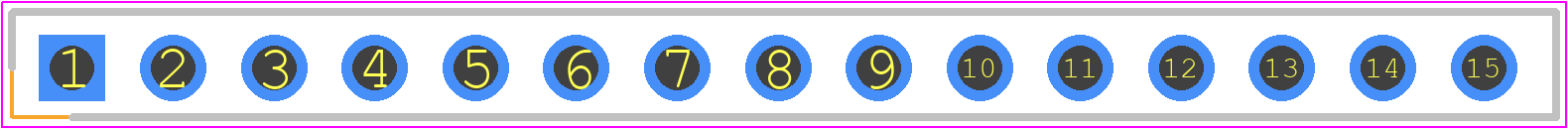

BLG1X15 - Econ Connect PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - BLG1X15

3D Models

BLG1X15 - Econ Connect - 3D model - Header, Receptacle - Straight PTH Box - BLG1X15

Datasheet Download Datasheet
Stock & Prices Price & Stock for BLG1X15
Part Number BLG1X15
Manufacturer Econ Connect
Pin Count 15
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - BLG1X15
Released Date Feb 3, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BLG1X15 Details

Manufacturer Part Number:
BLG1X15
Manufacturer:
econ connect

Trust Checks

Community Provided

System Verified

Community Approved

BLG1X15 Overview

Use the download button to access the BLG1X15 schematic symbol, PCB footprint, and 3D model.
