BLG2X22 - Econ Connect

Description: 3A, 1000V, -40 °C to +105 °C Female Header Pitch 2.54 mm double row, height 8.5 mm

Download BLG2X22 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BLG2X22 model

Email notifications will be applied after download.

Send part feedback

Symbol

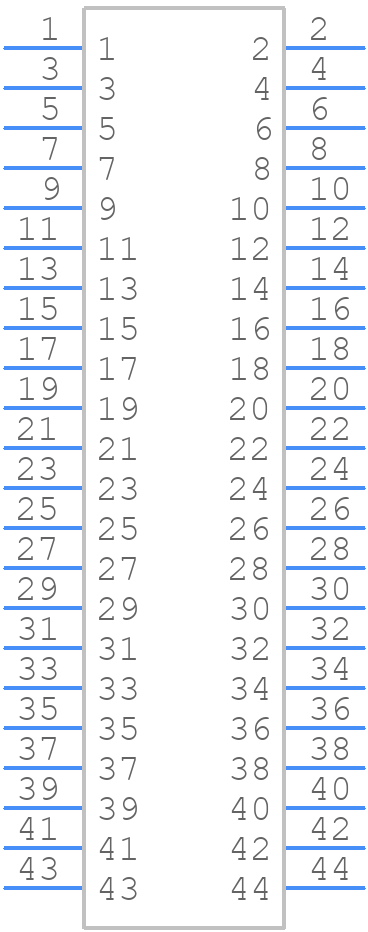

BLG2X22 - Econ Connect - PCB symbol

PCB Footprints

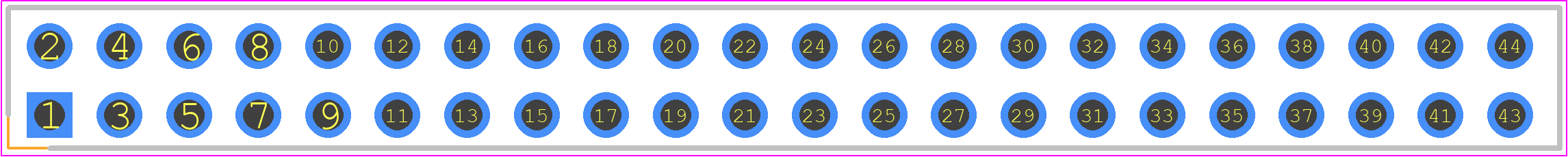

BLG2X22 - Econ Connect PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - BLG2X22

3D Models

BLG2X22 - Econ Connect - 3D model - Header, Receptacle - Straight PTH Box - BLG2X22

Datasheet Download Datasheet
Stock & Prices Price & Stock for BLG2X22
Part Number BLG2X22
Manufacturer Econ Connect
Pin Count 44
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - BLG2X22
Released Date Oct 10, 2023
Last Modified Date Oct 10, 2023 9:43 AM UTC
Pinout / Pin List Click Here (Member Only)

BLG2X22 Details

Manufacturer Part Number:
BLG2X22
Manufacturer:
econ connect

Trust Checks

Community Provided

System Verified

Community Approved

BLG2X22 Overview

Use the download button to access the BLG2X22 schematic symbol, PCB footprint, and 3D model.
