BLM41PG181SN1L - Murata Electronics

Description: BLM41_N1L Series EMI Suppression Filter 180Ω±25% at 100MHz 3.5A @85℃

Download BLM41PG181SN1L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BLM41PG181SN1L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

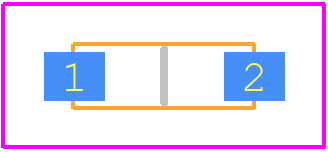

BLM41PG181SN1L - Murata Electronics PCB footprint - Other - Other - BLM41 L=4.5 W=1.6 T=1.6
click to zoom
3D Models
BLM41PG181SN1L - Murata Electronics - 3D model - Other - BLM41 L=4.5 W=1.6 T=1.6
click to zoom

BLM41PG181SN1L Details

  • Manufacturer Part Number:

    BLM41PG181SN1L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1806, 2 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    MONOLITHIC TYPE

  • Case Code:

    1806

  • Construction:

    Chip Bead

  • DC Resistance-Max:

    0.025 Ω

  • Filter Type:

    FERRITE CHIP

  • Frequency-Max:

    100 MHz

  • Frequency-Min:

    100 MHz

  • Height:

    1.6 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    180 OHM Ω

  • Packing Method:

    TAPE

  • Rated Current:

    3 A

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    1.6 mm

BLM41PG181SN1L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BLM41PG181SN1L can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The BLM41PG181SN1L is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures outlined in the datasheet and Murata's moisture sensitivity guidelines to prevent damage.
  • The maximum allowable voltage for the BLM41PG181SN1L is 50V. Exceeding this voltage may cause damage to the component or affect its performance.
  • The BLM41PG181SN1L is rated for operation up to 125°C. However, it's essential to consider the component's temperature coefficient and derating factors when designing for high-temperature applications.
  • To ensure the reliability of the BLM41PG181SN1L in high-vibration environments, follow Murata's recommended mounting and soldering guidelines, and consider using additional mechanical support or potting compounds if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLM41PG181SN1L Overview

Use the download button to access the BLM41PG181SN1L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLM41, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
