BLUENRG-234N - STMicroelectronics

Description: Bluetooth® LE 5.2 Wireless Network Coprocessor

Download BLUENRG-234N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

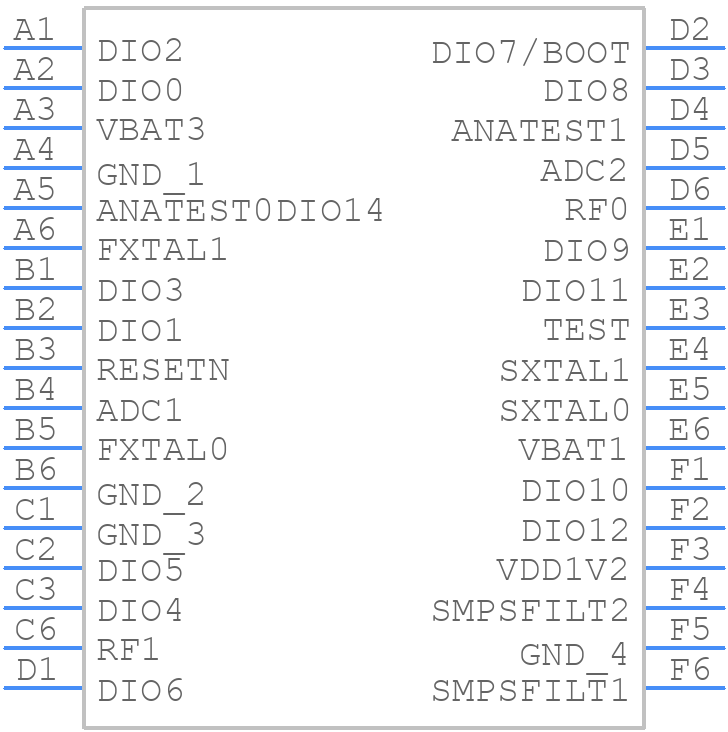

BLUENRG-234N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-234N - STMicroelectronics PCB footprint - BGA - BGA - WLCSP34 (2.66 x 2.56 mm)
click to zoom
3D Models
BLUENRG-234N - STMicroelectronics - 3D model - BGA - WLCSP34 (2.66 x 2.56 mm)
click to zoom

BLUENRG-234N Details

  • Manufacturer Part Number:

    BLUENRG-234N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-34

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-07-21

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

BLUENRG-234N Frequently Asked Questions (FAQs)

  • The maximum transmission power of the BLUENRG-234N is +8 dBm.
  • STMicroelectronics provides a coexistence algorithm in the BlueNRG-MSD software development kit (SDK) to ensure coexistence with other 2.4 GHz devices. The algorithm dynamically adjusts the transmission power and data rate to minimize interference.
  • STMicroelectronics provides a recommended PCB layout in the BLUENRG-234N datasheet and application notes. It is essential to follow the recommended layout to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BLUENRG-234N has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. STMicroelectronics provides a secure firmware update mechanism in the BlueNRG-MSD SDK, which uses cryptographic algorithms to ensure the integrity and confidentiality of the firmware updates.
  • The power consumption of the BLUENRG-234N varies depending on the mode. In transmit mode, the current consumption is around 10 mA. In receive mode, it is around 8 mA. In sleep mode, the current consumption is around 1 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-234N Overview

Use the download button to access the BLUENRG-234N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other Telecom ICs

About STMicroelectronics
