BLUENRG-332AT - STMicroelectronics

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.3 2.4GHz 32-VFQFN Exposed Pad

Download BLUENRG-332AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

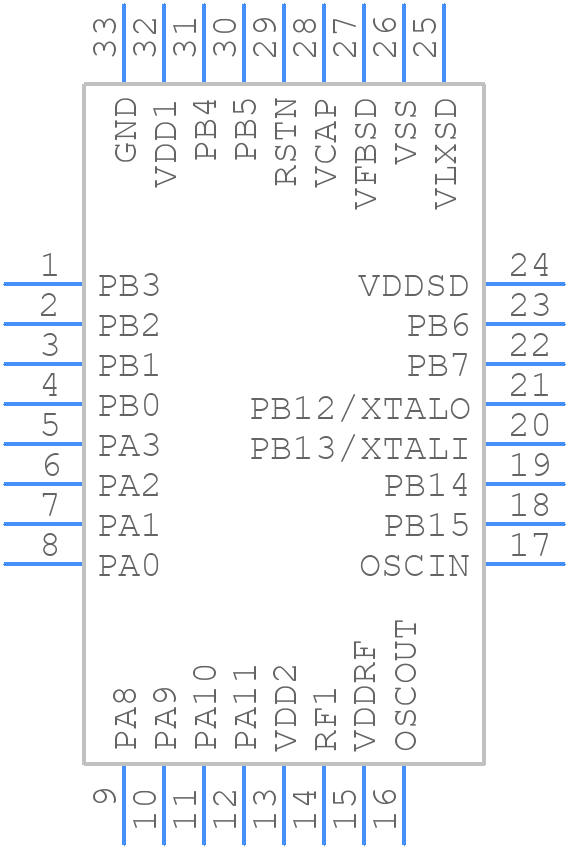

BLUENRG-332AT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-332AT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 _2024
click to zoom
3D Models
BLUENRG-332AT - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 _2024
click to zoom

BLUENRG-332AT Details

  • Manufacturer Part Number:

    BLUENRG-332AT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-332AT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-332AT is +8 dBm.
  • To configure the BLUENRG-332AT for low power consumption, you can use the STMicroelectronics' BlueNRG-MSD library, which provides APIs for power management. You can also use the device's built-in low-power modes, such as the 'Shutdown' mode, which reduces power consumption to less than 1 μA.
  • Yes, the BLUENRG-332AT can be used with an external antenna. The device has a built-in antenna switch that allows you to connect an external antenna. However, you need to ensure that the external antenna is designed for Bluetooth Low Energy (BLE) applications and meets the required specifications.
  • The BLUENRG-332AT has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure firmware updates, you can use the STMicroelectronics' BlueNRG-MSD library, which provides APIs for secure firmware updates. You can also use third-party libraries and tools, such as the Secure Firmware Update (SFU) tool, to implement secure firmware updates.
  • The maximum data transfer rate of the BLUENRG-332AT is 2 Mbps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-332AT Overview

Use the download button to access the BLUENRG-332AT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
