BLUENRG-332VT - STMicroelectronics

Description: Programmable Bluetooth® Low Energy wireless SoC

Download BLUENRG-332VT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

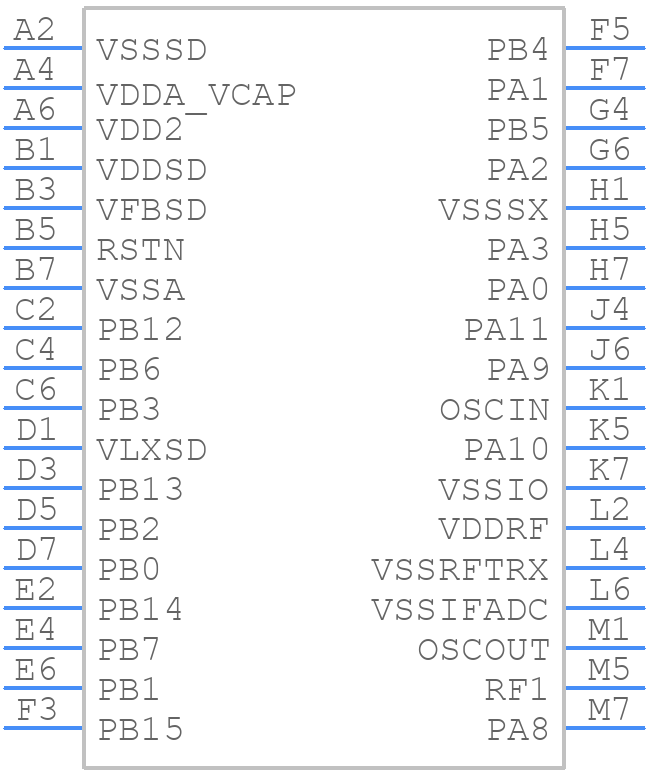

BLUENRG-332VT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-332VT - STMicroelectronics PCB footprint - Other - Other - WLCSP36 (2.6525x 2.5925 x 0.4, pitch 0.4 mm)
click to zoom
3D Models
BLUENRG-332VT - STMicroelectronics - 3D model - Other - WLCSP36 (2.6525x 2.5925 x 0.4, pitch 0.4 mm)
click to zoom

BLUENRG-332VT Details

  • Manufacturer Part Number:

    BLUENRG-332VT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA, BGA36,7X12,16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    R-PBGA-B36

  • Length:

    2.652 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,7X12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.422 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.592 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-332VT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-332VT is +8 dBm.
  • To configure the BLUENRG-332VT for low power consumption, you can use the device's low power modes, such as the 'Shutdown' mode, 'Standby' mode, or 'Hibernate' mode. You can also adjust the transmit power, data rate, and other parameters to optimize power consumption for your specific application.
  • Yes, the BLUENRG-332VT can be used with an external antenna. The device has a 50-ohm antenna pin that can be connected to an external antenna. However, you will need to ensure that the antenna is designed for the 2.4 GHz frequency band and meets the necessary regulatory requirements.
  • The BLUENRG-332VT supports BLE security features such as encryption, authentication, and secure connections. To implement BLE security, you will need to use the device's built-in cryptographic accelerators and follow the guidelines provided in the Bluetooth SIG's security specifications.
  • Yes, the BLUENRG-332VT can be used with a non-STMicroelectronics microcontroller. The device communicates with the microcontroller using a standard SPI or UART interface, making it compatible with a wide range of microcontrollers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-332VT Overview

Use the download button to access the BLUENRG-332VT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
