BLUENRG-345AT - STMicroelectronics

Description: STMicroelectronics BLUENRG-345AT, 32 bit ARM Cortex M0 Bluetooth System On Chip SOC 48-Pin QFN48

Download BLUENRG-345AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

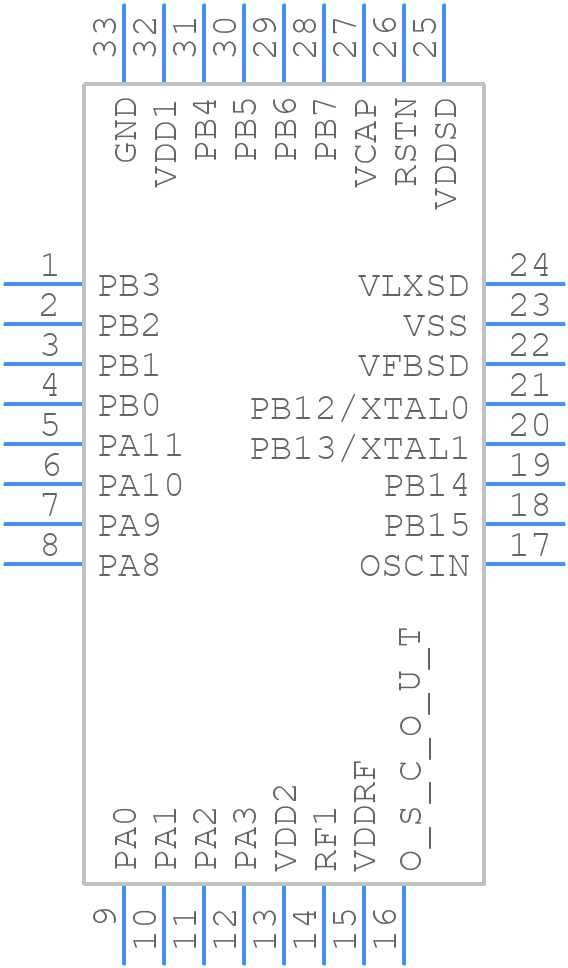

BLUENRG-345AT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-345AT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32
click to zoom
3D Models
BLUENRG-345AT - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32
click to zoom

BLUENRG-345AT Details

  • Manufacturer Part Number:

    BLUENRG-345AT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-07-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-345AT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-345AT is +8 dBm.
  • To configure the BLUENRG-345AT for low power consumption, you can use the device's low power modes, such as the 'Sleep' mode, which reduces the current consumption to around 1.5 μA. You can also adjust the transmission power, data rate, and other parameters to optimize power consumption for your specific application.
  • Yes, the BLUENRG-345AT can be used with an external antenna. The device has a built-in antenna switch that allows you to connect an external antenna. However, you need to ensure that the external antenna is designed for the 2.4 GHz frequency band and has a suitable impedance matching to avoid any performance degradation.
  • The BLUENRG-345AT supports various security protocols, including AES-128 encryption, to ensure secure data transmission. You can implement secure data transmission by using the device's built-in security features, such as encryption and decryption, and by following the guidelines provided in the datasheet and application notes.
  • The maximum range of the BLUENRG-345AT depends on various factors, such as the transmission power, data rate, and environment. In general, the device can achieve a range of up to 100 meters in open space, but this can be affected by obstacles, interference, and other factors.
