BLUENRG-345MT - STMicroelectronics

Description: Programmable Bluetooth® Low Energy wireless SoC

Download BLUENRG-345MT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

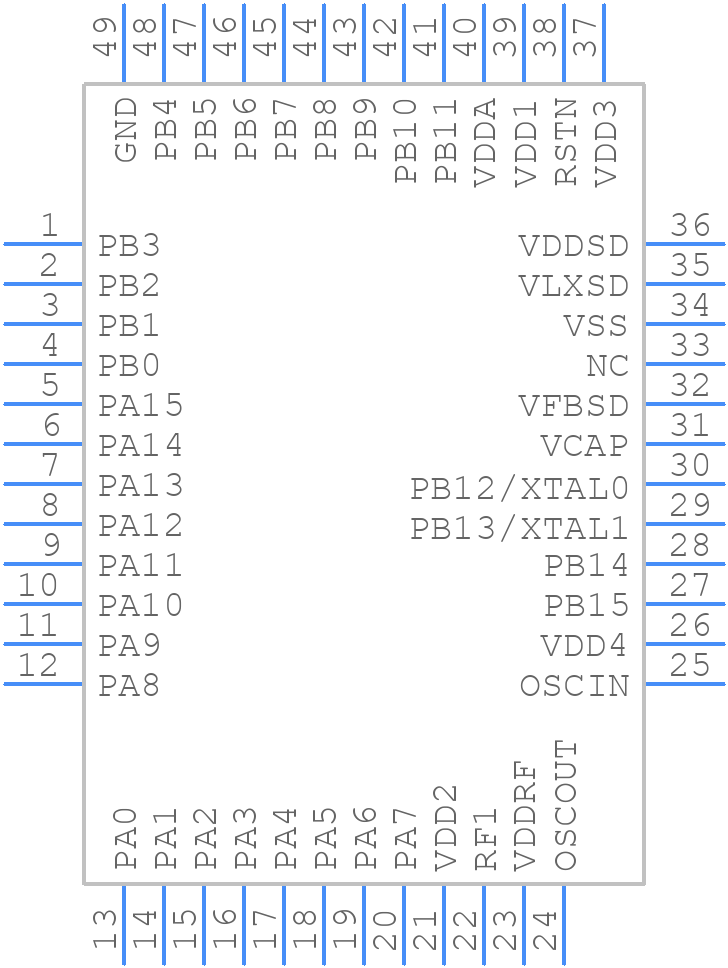

BLUENRG-345MT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-345MT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (6x6x0.9, pitch 0.4 mm-
click to zoom
3D Models
BLUENRG-345MT - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN48 (6x6x0.9, pitch 0.4 mm-
click to zoom

BLUENRG-345MT Details

  • Manufacturer Part Number:

    BLUENRG-345MT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-07-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-345MT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-345MT is +8 dBm.
  • To configure the BLUENRG-345MT for low power consumption, you can use the device's low power modes, such as the 'Sleep' mode, which reduces the current consumption to around 1.5 μA. You can also adjust the transmission power, data rate, and other parameters to optimize power consumption for your specific application.
  • Yes, the BLUENRG-345MT can be used with an external antenna. The device has a built-in antenna switch that allows you to connect an external antenna. However, you need to ensure that the external antenna is designed for the 2.4 GHz frequency band and has the correct impedance matching for optimal performance.
  • The BLUENRG-345MT supports various security protocols, including AES-128 encryption, to ensure secure data transmission. You can implement secure data transmission by using the device's built-in security features, such as encryption and decryption, and by following secure coding practices, such as using secure keys and authentication mechanisms.
  • The maximum range of the BLUENRG-345MT depends on various factors, such as the transmission power, antenna gain, and environmental conditions. In general, the device can achieve a range of up to 100 meters in open space, but this can be affected by obstacles, interference, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-345MT Overview

Use the download button to access the BLUENRG-345MT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
