BLUENRG-345VC - STMicroelectronics

Description: Programmable Bluetooth® Low Energy wireless SoC

Download BLUENRG-345VC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

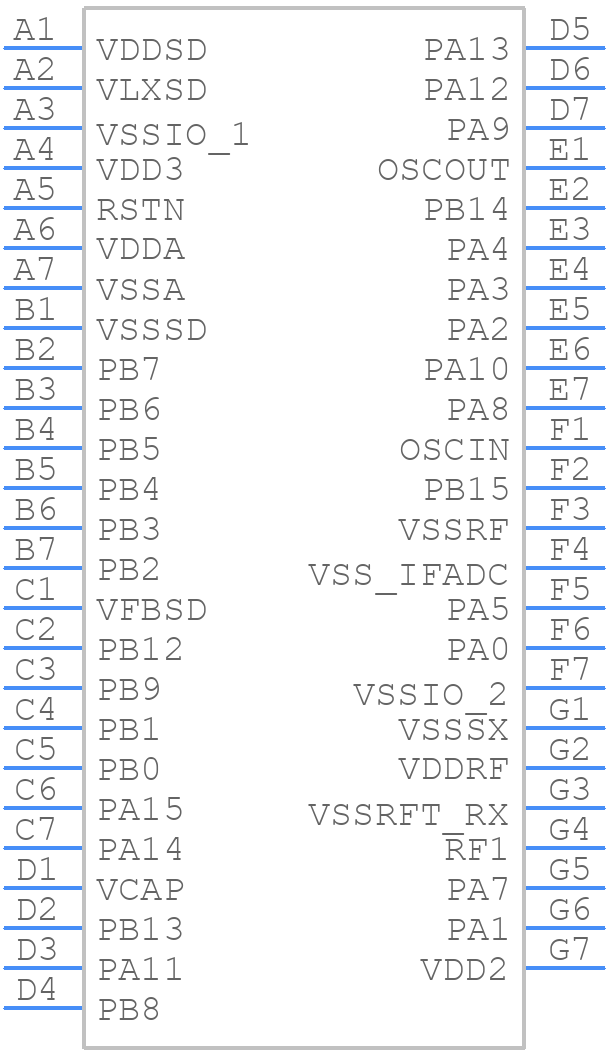

BLUENRG-345VC - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-345VC - STMicroelectronics PCB footprint - BGA - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom
3D Models
BLUENRG-345VC - STMicroelectronics - 3D model - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom

BLUENRG-345VC Details

  • Manufacturer Part Number:

    BLUENRG-345VC

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-07-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    3.14 mm

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA49,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.42 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.14 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-345VC Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-345VC is +8 dBm, but it can be adjusted to comply with different regulatory requirements.
  • STMicroelectronics provides a coexistence algorithm that can be implemented using the device's APIs. Additionally, the device supports adaptive frequency hopping (AFH) to minimize interference.
  • The power consumption of the BLUENRG-345VC in sleep mode is typically around 1.5 μA, but this can vary depending on the specific configuration and usage.
  • Yes, the BLUENRG-345VC can be used with any microcontroller that supports SPI or UART interfaces. However, STMicroelectronics provides optimized software libraries for their own microcontrollers, such as the STM32 series.
  • The BLUENRG-345VC supports BLE 5.0 features, including long-range mode and 2 Mbps data rate. These features can be enabled using the device's APIs and configuration registers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-345VC Overview

Use the download button to access the BLUENRG-345VC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics
