BLUENRG-345VT - STMicroelectronics

Description: Programmable Bluetooth® Low Energy wireless SoC

Download BLUENRG-345VT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

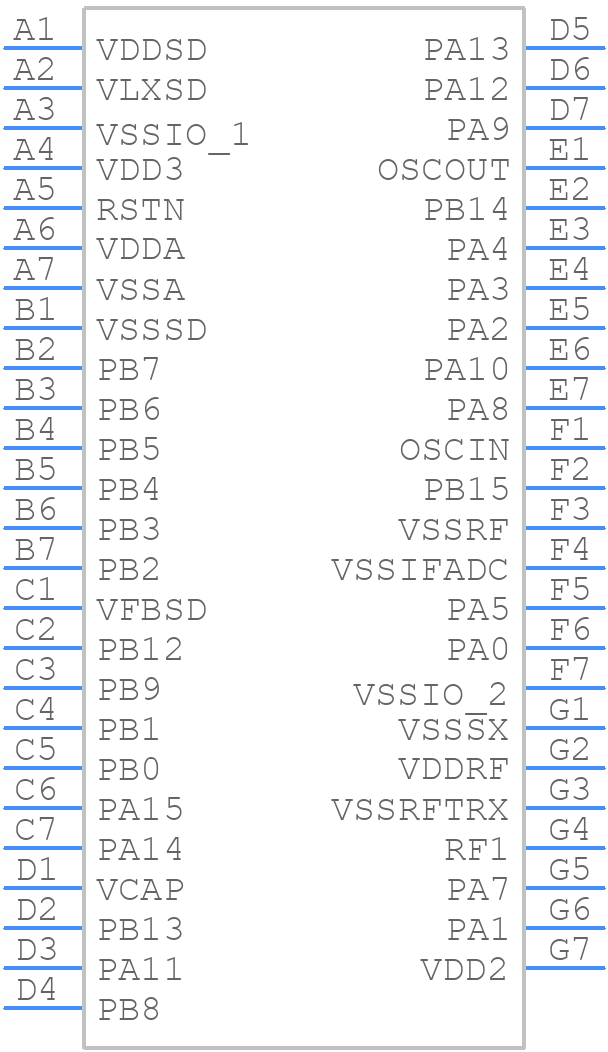

BLUENRG-345VT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-345VT - STMicroelectronics PCB footprint - BGA - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom
3D Models
BLUENRG-345VT - STMicroelectronics - 3D model - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom

BLUENRG-345VT Details

  • Manufacturer Part Number:

    BLUENRG-345VT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2020-07-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    3.14 mm

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA49,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.42 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.14 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-345VT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-345VT is +8 dBm.
  • To configure the BLUENRG-345VT for low power consumption, you can use the device's low power modes, such as the 'Shutdown' mode, 'Standby' mode, or 'Hibernate' mode. You can also adjust the transmit power, data rate, and other parameters to optimize power consumption.
  • Yes, the BLUENRG-345VT can be used with an external antenna. The device has a 50-ohm antenna pin that can be connected to an external antenna. However, you need to ensure that the antenna is designed for Bluetooth Low Energy (BLE) applications and meets the required specifications.
  • The BLUENRG-345VT supports various security features, including encryption, decryption, and authentication. You can implement secure data transmission by using the device's built-in security features, such as AES encryption, and following the guidelines provided in the Bluetooth SIG's security specification.
  • The maximum range of the BLUENRG-345VT depends on various factors, including the environment, antenna design, and transmit power. In general, the device can achieve a range of up to 100 meters (330 feet) in open air, but this can be affected by obstacles, interference, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-345VT Overview

Use the download button to access the BLUENRG-345VT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
