BLUENRG-355VT - STMicroelectronics

Description: Programmable Bluetooth® Low Energy wireless SoC

Download BLUENRG-355VT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

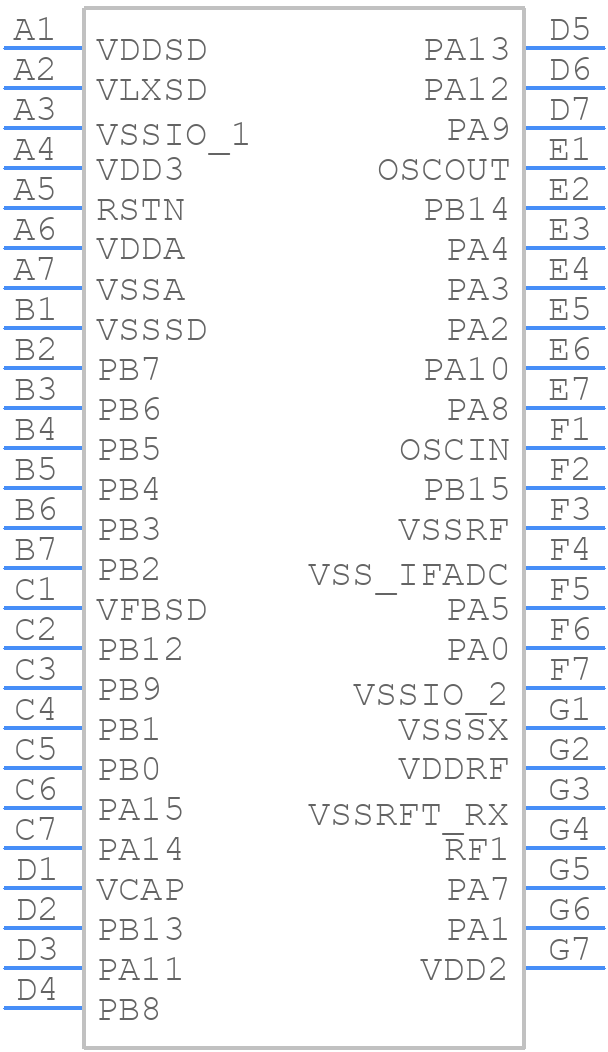

BLUENRG-355VT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-355VT - STMicroelectronics PCB footprint - BGA - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom
3D Models
BLUENRG-355VT - STMicroelectronics - 3D model - BGA - WLCSP49 (3.14x3.14x0.4, pitch 0.4 mm)
click to zoom

BLUENRG-355VT Details

  • Manufacturer Part Number:

    BLUENRG-355VT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2020-07-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    3.14 mm

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA49,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.42 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.14 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BLUENRG-355VT Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BLUENRG-355VT is +8 dBm.
  • STMicroelectronics provides a coexistence algorithm in the BlueNRG-MS SDK, which can be used to implement coexistence with other 2.4 GHz devices. Additionally, the device has a built-in mechanism to detect and avoid interference from other devices.
  • The power consumption of the BLUENRG-355VT in sleep mode is typically around 1.5 μA, depending on the specific configuration and operating conditions.
  • Yes, the BLUENRG-355VT can be used with a non-STMicroelectronics microcontroller, as long as the microcontroller has a compatible SPI or UART interface and can provide the necessary power supply and clock signals.
  • STMicroelectronics provides a firmware update mechanism in the BlueNRG-MS SDK, which allows for OTA updates using the Bluetooth Low Energy protocol. The device also has a built-in bootloader that can be used to update the firmware.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-355VT Overview

Use the download button to access the BLUENRG-355VT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
