BM20SPKA1NBC-0001AA - Microchip

Description: Bluetooth Modules (802.15.1) BT 4.1 Stereo Audio No-Shield/Antenna

Download BM20SPKA1NBC-0001AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

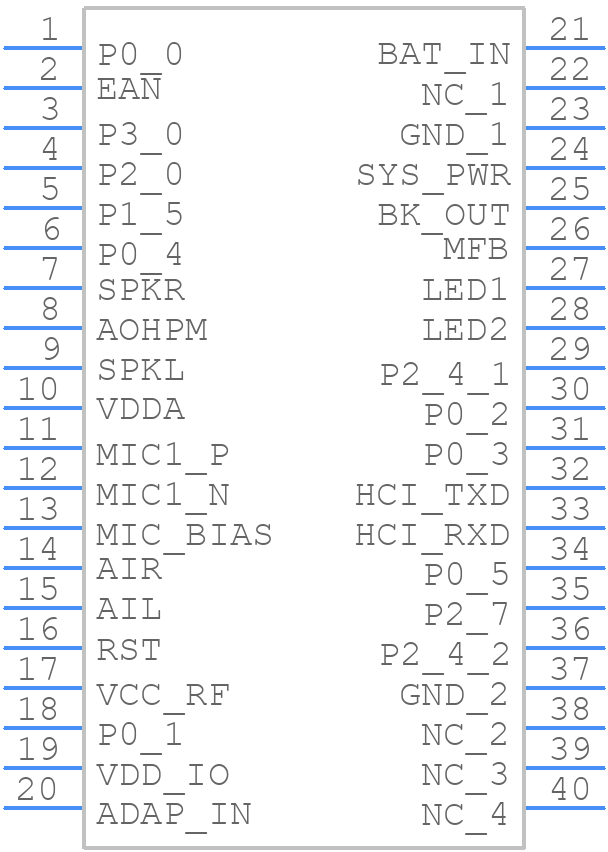

BM20SPKA1NBC-0001AA - Microchip - PCB symbol
click to zoom
PCB Footprints

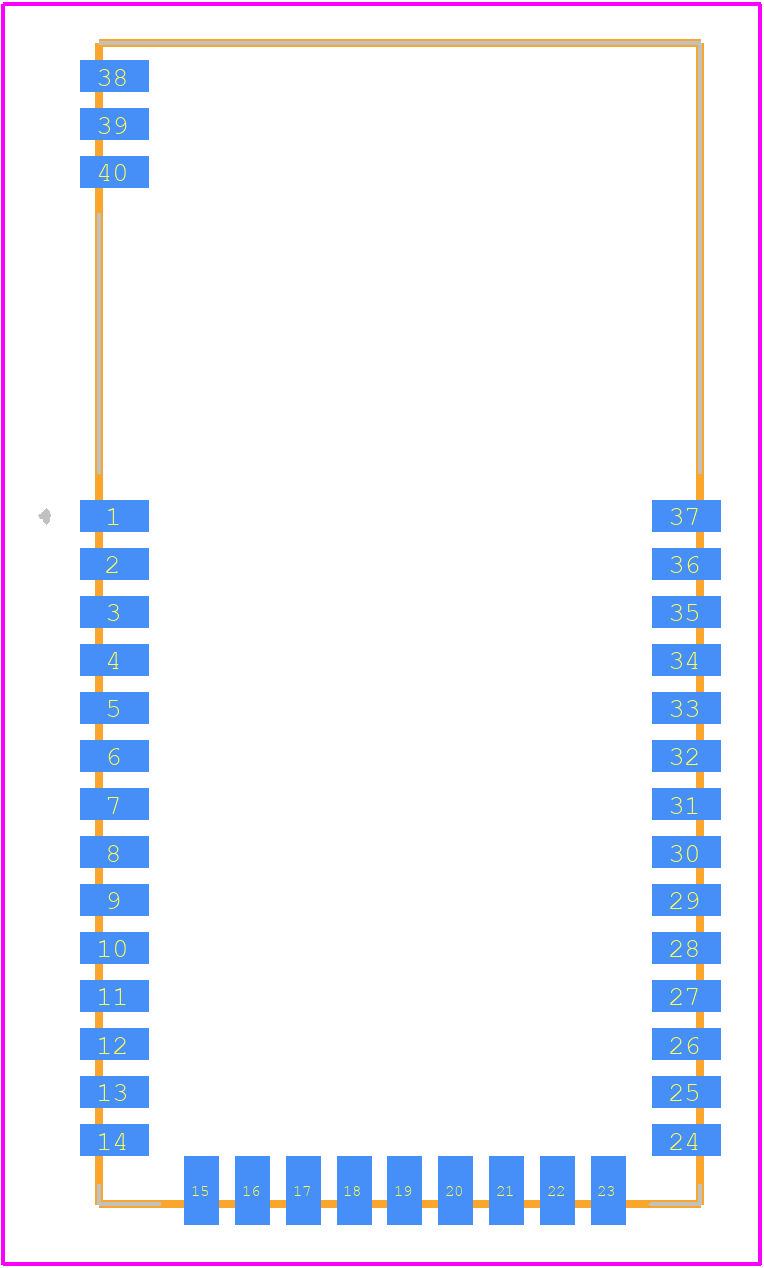

BM20SPKA1NBC-0001AA - Microchip PCB footprint - Other - Other - BM20SPKA1NBC-0001AA-2
click to zoom
3D Models
BM20SPKA1NBC-0001AA - Microchip - 3D model - Other - BM20SPKA1NBC-0001AA-2
click to zoom

BM20SPKA1NBC-0001AA Details

  • Manufacturer Part Number:

    BM20SPKA1NBC-0001AA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    MODULE-40

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • JESD-30 Code:

    R-XXMA-N40

  • Length:

    29 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,40LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.7 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BM20SPKA1NBC-0001AA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BM20SPKA1NBC-0001AA is -40°C to +85°C.
  • To configure the module for optimal power consumption, ensure that the module is in sleep mode when not in use, and adjust the transmit power level according to your application's requirements.
  • The maximum transmission distance of the BM20SPKA1NBC-0001AA depends on the environment and the antenna used. In ideal conditions, the module can achieve a transmission distance of up to 100 meters.
  • Yes, the BM20SPKA1NBC-0001AA is a standalone Bluetooth module that can be used with any MCU that supports UART or SPI interfaces.
  • To implement secure data transmission with the BM20SPKA1NBC-0001AA, use the built-in encryption and authentication features of the Bluetooth protocol, such as AES encryption and secure pairing.
