BM20SPKS1NBC-0001AA - Microchip

Description: Bluetooth Modules (802.15.1) BT 4.1 Stereo Audio w/ Shield/Antenna

Download BM20SPKS1NBC-0001AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

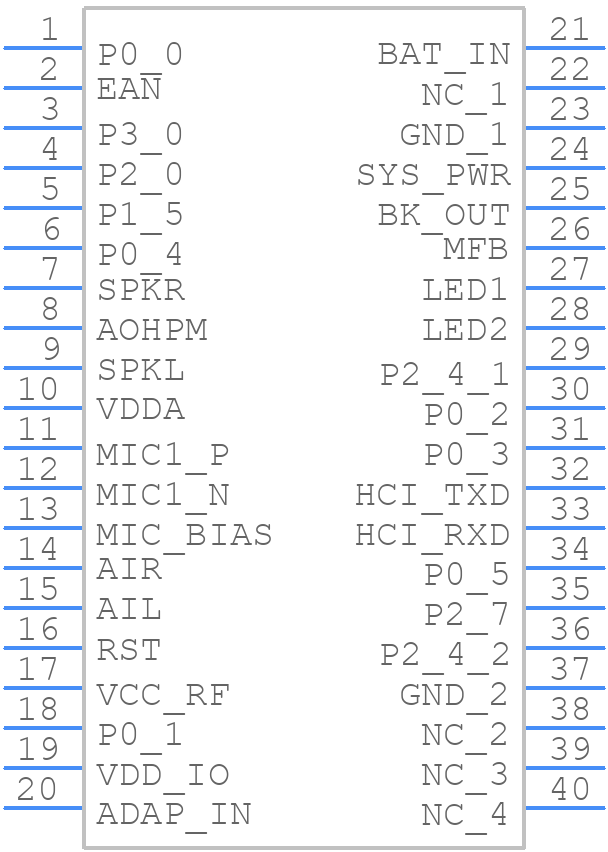

Symbol
BM20SPKS1NBC-0001AA - Microchip - PCB symbol
click to zoom

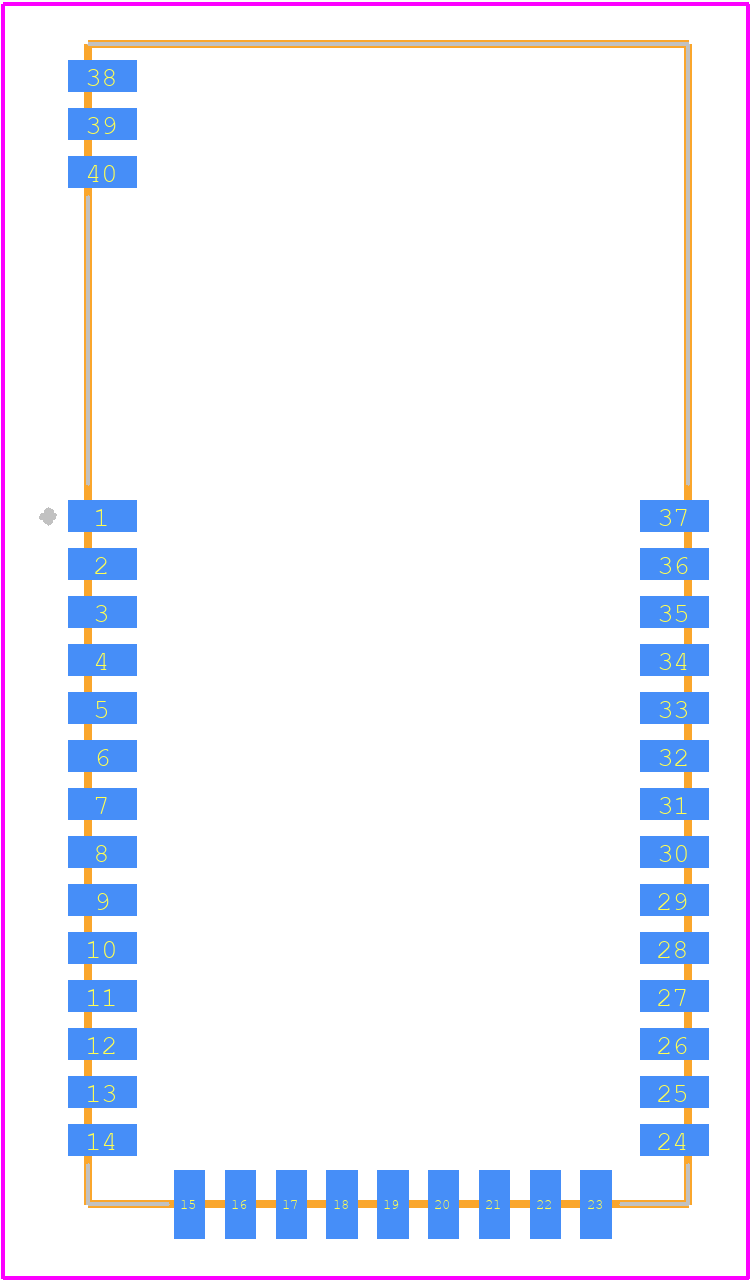

PCB Footprints
BM20SPKS1NBC-0001AA - Microchip PCB footprint - Other - Other - BM20SPKS1NBC-0001AA-2
click to zoom
3D Models
BM20SPKS1NBC-0001AA - Microchip - 3D model - Other - BM20SPKS1NBC-0001AA-2
click to zoom

BM20SPKS1NBC-0001AA Details

  • Manufacturer Part Number:

    BM20SPKS1NBC-0001AA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    MODULE-40

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    15

  • JESD-30 Code:

    R-XXMA-N40

  • Length:

    29 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,40LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.7 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BM20SPKS1NBC-0001AA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BM20SPKS1NBC-0001AA is -40°C to +85°C.
  • To configure the module for optimal power consumption, ensure that the module is in sleep mode when not in use, and adjust the transmit power to the minimum required for your application. Additionally, consider using the module's built-in power-saving features, such as the 'Low Power Mode' and 'Deep Sleep Mode'.
  • The BM20SPKS1NBC-0001AA supports a maximum data transfer rate of 2 Mbps.
  • To implement secure data transmission, use the module's built-in encryption and decryption capabilities, such as AES-128 encryption. Additionally, consider implementing secure protocols, such as SSL/TLS, to ensure end-to-end encryption.
  • The typical current consumption of the BM20SPKS1NBC-0001AA in transmit mode is around 40 mA.
