BM24-20DS/2-0.35V(51) - Hirose

Description: Board to Board & Mezzanine Connectors 20P RECP B2FPC 0.8mm H .35mm P

Download BM24-20DS/2-0.35V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

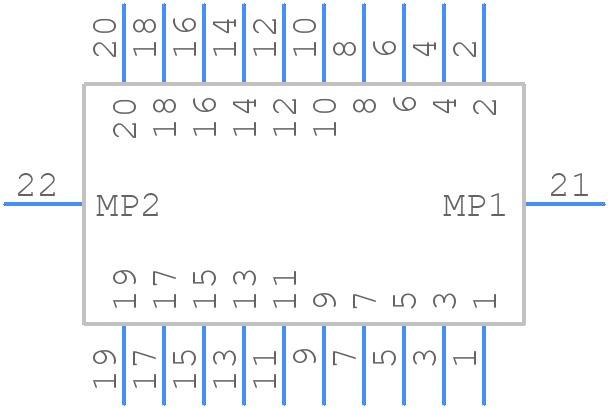

BM24-20DS/2-0.35V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints

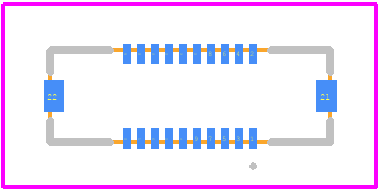

BM24-20DS/2-0.35V(51) - Hirose PCB footprint - Other - Other - BM24-20DS/2-0.35V(51)-2
click to zoom
3D Models
BM24-20DS/2-0.35V(51) - Hirose - 3D model - Other - BM24-20DS/2-0.35V(51)-2
click to zoom

BM24-20DS/2-0.35V(51) Details

  • Manufacturer Part Number:

    BM24-20DS/2-0.35V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    3

  • Connector Type:

    BOARD STACKING CONNECTOR

BM24-20DS/2-0.35V(51) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the BM24-20DS/2-0.35V(51) is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for high-vibration applications.
  • The operating temperature range for the BM24-20DS/2-0.35V(51) is -40°C to 105°C, as specified in the datasheet.
  • Yes, the BM24-20DS/2-0.35V(51) is compatible with lead-free soldering, with a recommended soldering temperature of 260°C (max).
  • The mating cycle rating for the BM24-20DS/2-0.35V(51) is 500 cycles, as specified in the datasheet.
