- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BM28B0.6-18DP/2-0.35V(53)
- Part Number BM28B0.6-18DP/2-0.35V(53)
- Manufacturer Hirose
- Pin Count 22
- Part Category Connector
- Package Category Other
- Footprint Name Other - BM28B0.6-18DP/2-0.35V(53)-2
- Released Date Oct 16, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BM28B0.6-18DP/2-0.35V(53) Details
-
Manufacturer Part Number:
BM28B0.6-18DP/2-0.35V(53)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
BOARD STACKING CONNECTOR
BM28B0.6-18DP/2-0.35V(53) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
-
Yes, the BM28B0.6-18DP/2-0.35V(53) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for high-vibration applications.
-
The operating temperature range for the BM28B0.6-18DP/2-0.35V(53) is -40°C to 105°C, as specified in the datasheet.
-
Yes, the BM28B0.6-18DP/2-0.35V(53) is compatible with lead-free soldering, with a recommended soldering temperature of 260°C (max).
-
The mating cycle rating for the BM28B0.6-18DP/2-0.35V(53) is 500 cycles, as specified in the datasheet.
Trust Checks
Expert Contribution
System Verified
Community Approved
BM28B0.6-18DP/2-0.35V(53) Overview

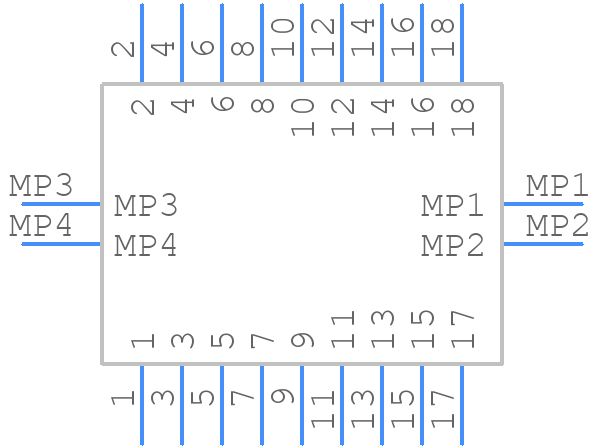

Use the download button to access the BM28B0.6-18DP/2-0.35V(53) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM28B,
or try a keyword search, such as Headers and Edge Type Connectors
