BM2LB300FJ-CE2 - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution 2ch Low-side Swtch 42V; 2.7A; SOP-J8

Download BM2LB300FJ-CE2 Model

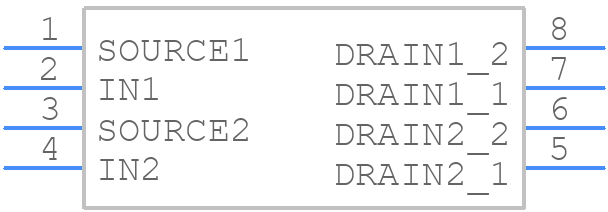

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM2LB300FJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8_2024
click to zoom
3D Models
BM2LB300FJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8_2024
click to zoom

BM2LB300FJ-CE2 Details

  • Manufacturer Part Number:

    BM2LB300FJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    50 µs

  • Turn-on Time:

    50 µs

  • Width:

    3.9 mm

BM2LB300FJ-CE2 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer or 4-layer PCB with a thermal relief pattern is also recommended to reduce thermal resistance.
  • Ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type (e.g. X5R or X7R) to maintain stability. Also, ensure that the feedback resistors are of low tolerance (e.g. 1%) to minimize output voltage variation.
  • The maximum allowable ripple voltage on the input is 10% of the nominal input voltage. Exceeding this may affect the regulator's stability and output voltage regulation.
  • While ceramic capacitors can be used, they may not be the best choice due to their limited capacitance and high ESR. X5R or X7R capacitors are recommended for their higher capacitance and lower ESR, which helps maintain output voltage stability.
  • Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input to protect the regulator from voltage surges or spikes. This helps prevent damage to the regulator and ensures reliable operation.
