BM2P014 - ROHM Semiconductor

Description: ROHM BM2P014 AC/DC Driver, PWM Controller 70 kHz, 7-Pin PDIP

Download BM2P014 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

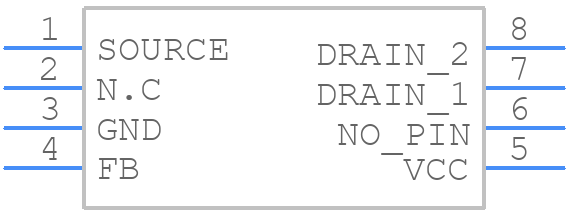

BM2P014 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BM2P014 - ROHM Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP7
click to zoom
3D Models
BM2P014 - ROHM Semiconductor - 3D model - Dual-In-Line Packages - DIP7
click to zoom

BM2P014 Details

  • Manufacturer Part Number:

    BM2P014

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    8.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.3 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

BM2P014 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer PCB with a solid ground plane on the bottom layer and a small thermal relief pattern around the thermal pad is suggested.
  • To ensure stable output voltage regulation, it's essential to decouple the input and output with ceramic capacitors (e.g., 10uF and 22uF, respectively) and use a low-ESR output capacitor (e.g., 22uF).
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent overheating.
  • The output voltage accuracy can be calculated by considering the internal voltage reference accuracy (±1.5%), the resistor tolerance (±1%), and the output voltage divider ratio. A total accuracy of ±2.5% can be expected.
  • The EN pin is used to enable or disable the regulator. Connect EN to VIN to enable the regulator, or connect it to GND to disable it. A pull-up resistor (e.g., 10kΩ) is recommended to prevent unwanted enabling.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM2P014 Overview

Use the download button to access the BM2P014 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2P0, or try a keyword search, such as Switching Regulator or Controllers
