ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device, and consider using a heat sink or thermal interface material to reduce the junction temperature.
Handle the device by the package body, avoiding touching the leads or die. Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and use anti-static packaging and handling procedures.
Yes, the BM2P016T-Z can be used in switching regulator applications, but it's essential to ensure the device is operated within its safe operating area (SOA) and follow the recommended layout and design guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation.
ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time above 240°C of 10-30 seconds, and a total process time of 60-90 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BM2P016T-Z Overview

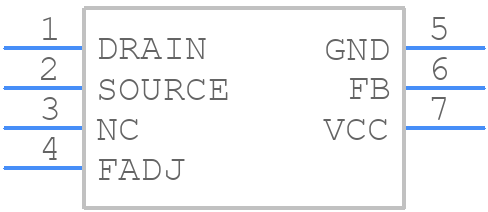

Use the download button to access the BM2P016T-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2P0,
or try a keyword search, such as Switching Regulator or Controllers
