BM2P034 - ROHM Semiconductor

Description: AC/DC Converters DC-DC Converter IC PWM w/650V MOSFET

Download BM2P034 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

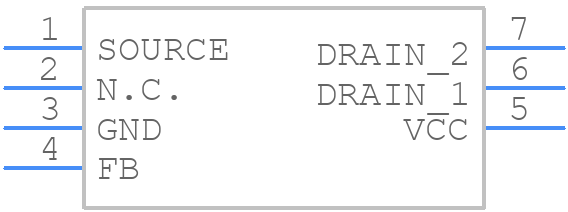

BM2P034 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BM2P034 - ROHM Semiconductor PCB footprint - Other - Other - BM2P034-1
click to zoom
3D Models
BM2P034 - ROHM Semiconductor - 3D model - Other - BM2P034-1
click to zoom

BM2P034 Details

  • Manufacturer Part Number:

    BM2P034

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    8.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.3 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

BM2P034 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be placed as close to the output pin as possible.
  • The maximum input voltage that BM2P034 can withstand without damage is 28V, but it's recommended to operate within the specified input voltage range of 2.5V to 18V for optimal performance.
  • BM2P034 is rated for operation up to 105°C, but the output current may need to be derated at higher temperatures to prevent overheating. Consult the datasheet for thermal derating curves.
  • An external current limit resistor or a dedicated overcurrent protection IC can be used to protect BM2P034 from overcurrent and short-circuit conditions.
