BM2P052F-GE2 - ROHM Semiconductor

Description: PWM type DC/DC converter IC Included 650V MOSFET

Download BM2P052F-GE2 Model

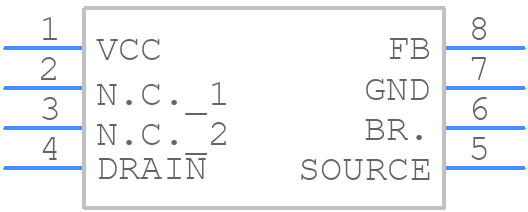

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM2P052F-GE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BM2P052F-GE2
click to zoom
3D Models
BM2P052F-GE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BM2P052F-GE2
click to zoom

BM2P052F-GE2 Details

  • Manufacturer Part Number:

    BM2P052F-GE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    8.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.71 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

BM2P052F-GE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure stable operation with a high-impedance input source, add a 1kΩ to 10kΩ resistor in series with the input pin to reduce the impedance. Additionally, consider adding a 10nF to 100nF capacitor in parallel with the input pin to filter out high-frequency noise.
  • The maximum allowed voltage on the enable pin (EN) is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the voltage on the EN pin does not exceed the voltage on the VCC pin to prevent damage to the device.
  • The BM2P052F-GE2 is rated for operation up to 125°C, but it's essential to consider the derating of the device's performance and power dissipation at high temperatures. Ensure that the device is properly heat-sinked, and the operating conditions are within the recommended specifications.
  • To prevent latch-up during power-on or power-off transitions, ensure that the power supply voltage (VCC) rises and falls monotonically, and the input signals are stable during these transitions. Adding a 10uF to 100uF capacitor in parallel with the power supply can help to reduce voltage transients and prevent latch-up.
