BM2P054 - ROHM Semiconductor

Description: Flyback Switching Regulator IC Positive 1 Output 600mA 7-DIP (0.300", 7.62mm), 7 Leads

Download BM2P054 Model

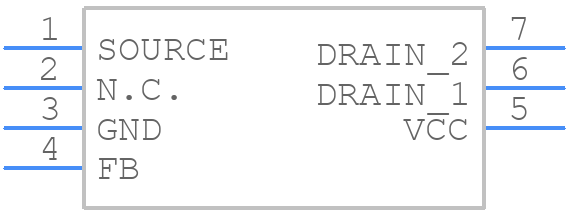

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM2P054 - ROHM Semiconductor PCB footprint - Other - Other - DIP7F_2025-3
click to zoom
3D Models
BM2P054 - ROHM Semiconductor  - 3D model - Other - DIP7F_2025-3
click to zoom

BM2P054 Details

  • Manufacturer Part Number:

    BM2P054

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    8.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.3 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

BM2P054 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer or 4-layer PCB with a solid ground plane is also recommended to reduce thermal resistance.
  • Ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value (at least 10uF) and ESR (less than 1 ohm) to maintain stability.
  • The maximum allowable ripple voltage on the input is 10% of the input voltage, but it's recommended to keep it below 5% to ensure stable operation.
  • While ceramic capacitors can be used, they may not provide sufficient ESR to ensure stability. It's recommended to use an electrolytic or tantalum capacitor with a low ESR value.
  • Use an external current limiting resistor or a fuse in series with the input to prevent overcurrent conditions. Additionally, ensure that the output capacitor is rated for the maximum output current.
