BM2P063HK-LBZ - ROHM Semiconductor

Description: PWM Type DC/DC Converter IC Integrated Switching MOSFET 30V,-40 °C to +105 °C

Download BM2P063HK-LBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

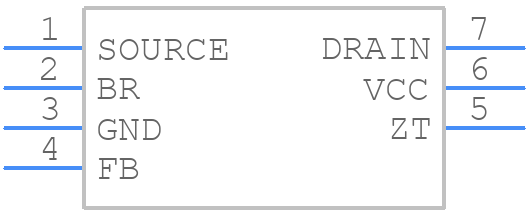

Symbol
BM2P063HK-LBZ - ROHM Semiconductor - PCB symbol
click to zoom

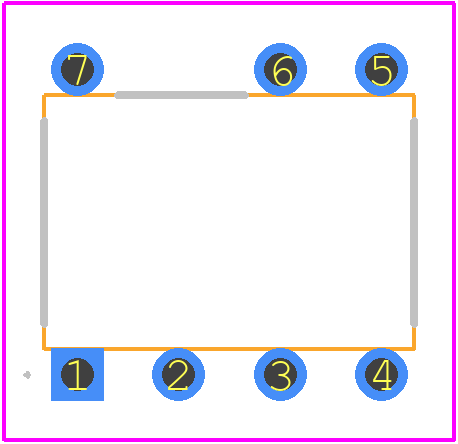

PCB Footprints
BM2P063HK-LBZ - ROHM Semiconductor PCB footprint - Other - Other - DIP7AK_2026
click to zoom
3D Models
BM2P063HK-LBZ - ROHM Semiconductor - 3D model - Other - DIP7AK_2026
click to zoom

BM2P063HK-LBZ Details

  • Manufacturer Part Number:

    BM2P063HK-LBZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    32 Weeks

  • Date Of Intro:

    2020-10-19

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    10.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.001 A

  • Package Body Material:

    PLASTIC

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.0016 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    68.5 kHz

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

BM2P063HK-LBZ Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 10 thermal vias (0.3mm diameter) connecting to a solid copper plane on the bottom layer. This ensures efficient heat dissipation.
  • Choose an input capacitor with a minimum capacitance of 10uF and a maximum ESR of 100mΩ. The capacitor should be placed as close as possible to the device. ROHM recommends a ceramic capacitor with an X7R or X5R dielectric.
  • ROHM recommends an output capacitor with a minimum capacitance of 22uF and a maximum ESR of 50mΩ. A ceramic capacitor with an X7R or X5R dielectric is suitable for this application.
  • Monitor the device's junction temperature (TJ) and ensure it remains within the recommended range of -40°C to 125°C. Use thermal simulation tools or thermal cameras to estimate the junction temperature during operation.
  • ROHM recommends a PCB material with a high thermal conductivity, such as FR4 or IMS. The recommended PCB thickness is 1.6mm or thicker to ensure efficient heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM2P063HK-LBZ Overview

Use the download button to access the BM2P063HK-LBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2P0, or try a keyword search, such as Switching Regulator or Controllers
