BM2P094F-GE2 - ROHM Semiconductor

Description: PWM type DC/DC converter IC Included 650V MOSFET

Download BM2P094F-GE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

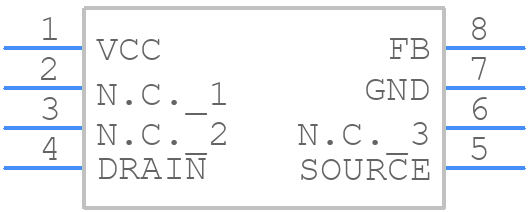

BM2P094F-GE2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BM2P094F-GE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BM2P094F-GE2-1
click to zoom
3D Models
BM2P094F-GE2 - ROHM Semiconductor - 3D model - Small Outline Packages - BM2P094F-GE2-1
click to zoom

BM2P094F-GE2 Details

  • Manufacturer Part Number:

    BM2P094F-GE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    8.9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.71 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

BM2P094F-GE2 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The BM2P094F-GE2 requires a bias voltage of 2.5V to 5.5V on the VCC pin, and the input voltage on the VIN pin should be within the recommended range of 2.7V to 5.5V.
  • The maximum power dissipation for the BM2P094F-GE2 is 1.2W, and it is recommended to keep the junction temperature below 125°C to ensure reliable operation.
  • The BM2P094F-GE2 is rated for operation up to 85°C, but it can be used in high-temperature environments up to 125°C with derating. Consult the datasheet for derating curves.
  • Handle the BM2P094F-GE2 with an anti-static wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM2P094F-GE2 Overview

Use the download button to access the BM2P094F-GE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2P0, or try a keyword search, such as Switching Regulator or Controllers
