BM60051FV-CE2 - ROHM Semiconductor

Description: Gate Drivers 1ch Gate Driver Providing Galvanic Isolation 2500Vrms Isolation Voltage

Download BM60051FV-CE2 Model

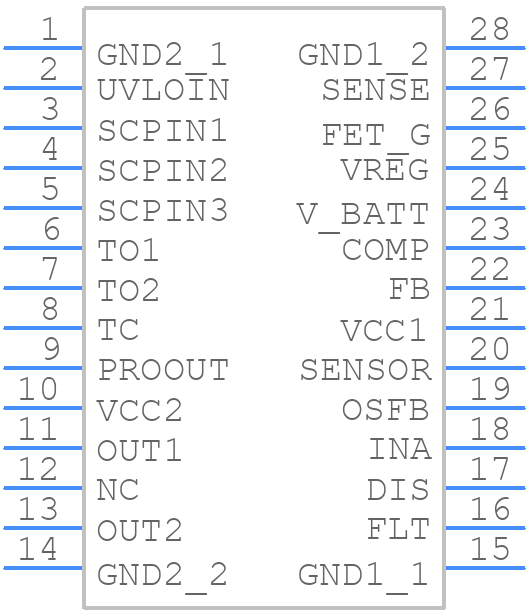

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

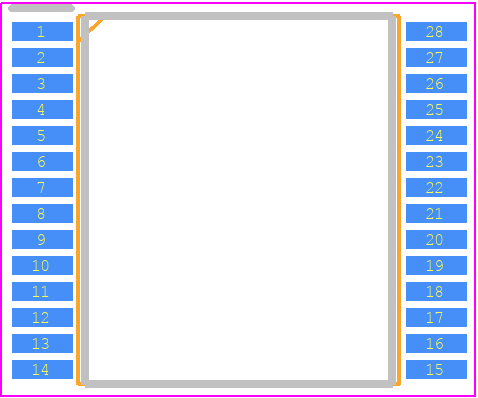

BM60051FV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B28W
click to zoom
3D Models
BM60051FV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-B28W
click to zoom

BM60051FV-CE2 Details

  • Manufacturer Part Number:

    BM60051FV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    SUPPLY CURRENT IS 1.35mA

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.4 mm

  • Supply Current-Max:

    1.47 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.26 µs

  • Turn-on Time:

    0.26 µs

  • Width:

    8 mm

BM60051FV-CE2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BM60051FV-CE2 is -40°C to 85°C.
  • To ensure proper power supply, connect the VCC pin to a stable 1.8V power source, and decouple it with a 0.1uF capacitor to ground.
  • The maximum current rating for the BM60051FV-CE2 is 100mA.
  • To configure the BM60051FV-CE2 for I2C communication, connect the SCL pin to the I2C clock line, and the SDA pin to the I2C data line. Ensure the I2C bus is properly terminated and pulled up to the power supply.
  • The INT pin is an interrupt output that signals when a conversion is complete or when an error occurs. It can be connected to a microcontroller's interrupt input to trigger an interrupt service routine.
