BM60052AFV-CE2 footprint, schematic symbol and 3D model by ROHM Semiconductor

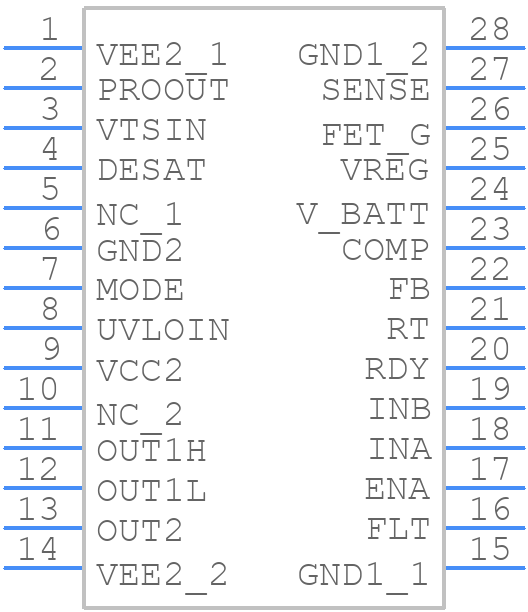

Symbol

PCB Footprints

3D Models

BM60052AFV-CE2 Details

ROHM provides a recommended PCB layout in the application note AN11984, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
According to the datasheet, the BM60052AFV-CE2 requires a 3.3V power supply with a recommended decoupling capacitor of 10uF or larger, placed as close to the VCC pin as possible, to ensure stable operation and minimize noise.
The BM60052AFV-CE2 is rated for operation from -40°C to 85°C, but it's recommended to operate within the -20°C to 70°C range for optimal performance and reliability.
The BM60052AFV-CE2 has a built-in low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the appropriate registers and configuring the clock frequency, as described in the datasheet.
The BM60052AFV-CE2 supports data transfer rates up to 400kbps, depending on the communication protocol and configuration used.

Community Provided

System Verified

Community Approved

Use the download button to access the BM60052AFV-CE2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BM600, or try a keyword search, such as MOSFET Drivers
