BM60212FV-CE2 - ROHM Semiconductor

Description: ROHM - BM60212FV-CE2 - MOSFET DRIVER, -40 TO 125DEG C

Download BM60212FV-CE2 Model

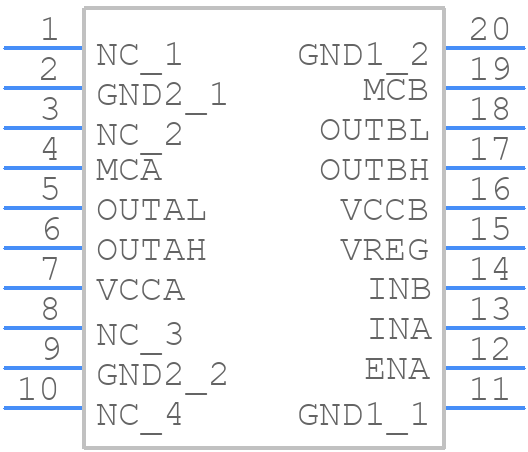

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM60212FV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BM60212FV-CE2
click to zoom
3D Models
BM60212FV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BM60212FV-CE2
click to zoom

BM60212FV-CE2 Details

  • Manufacturer Part Number:

    BM60212FV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Date Of Intro:

    2018-01-18

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.01 mm

  • Supply Current-Max:

    3.4 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    6.1 mm

BM60212FV-CE2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the VCC pin.
  • Monitor the input voltage (VIN) and ensure it is within the recommended range of 2.7V to 5.5V. Also, ensure the ambient temperature is within the recommended range of -40°C to 85°C.
  • A 10uF ceramic capacitor is recommended for the input capacitor (CIN). This value provides a good balance between noise filtering and stability.
  • Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines to reduce EMI. Also, ensure good grounding and decoupling.
  • The maximum output current of the BM60212FV-CE2 is 2A. However, it is recommended to limit the output current to 1.5A for reliable operation.
