BM64SPKS1MC1-0001AA - Microchip

Description: MICROCHIP - BM64SPKS1MC1-0001AA - BLUETOOTH MODULE, V4.2, 2.402-2.48GHZ

Download BM64SPKS1MC1-0001AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

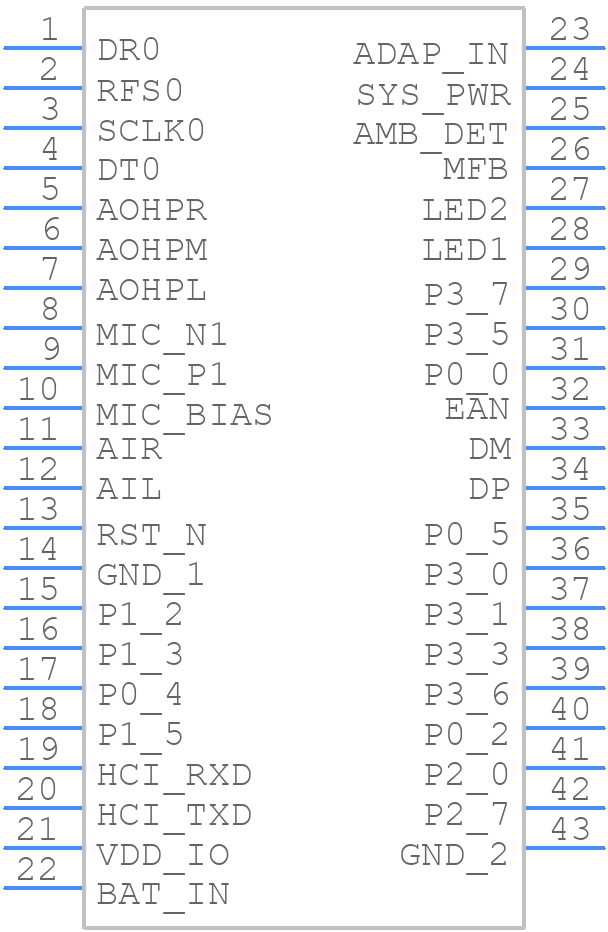

BM64SPKS1MC1-0001AA - Microchip - PCB symbol
click to zoom
PCB Footprints

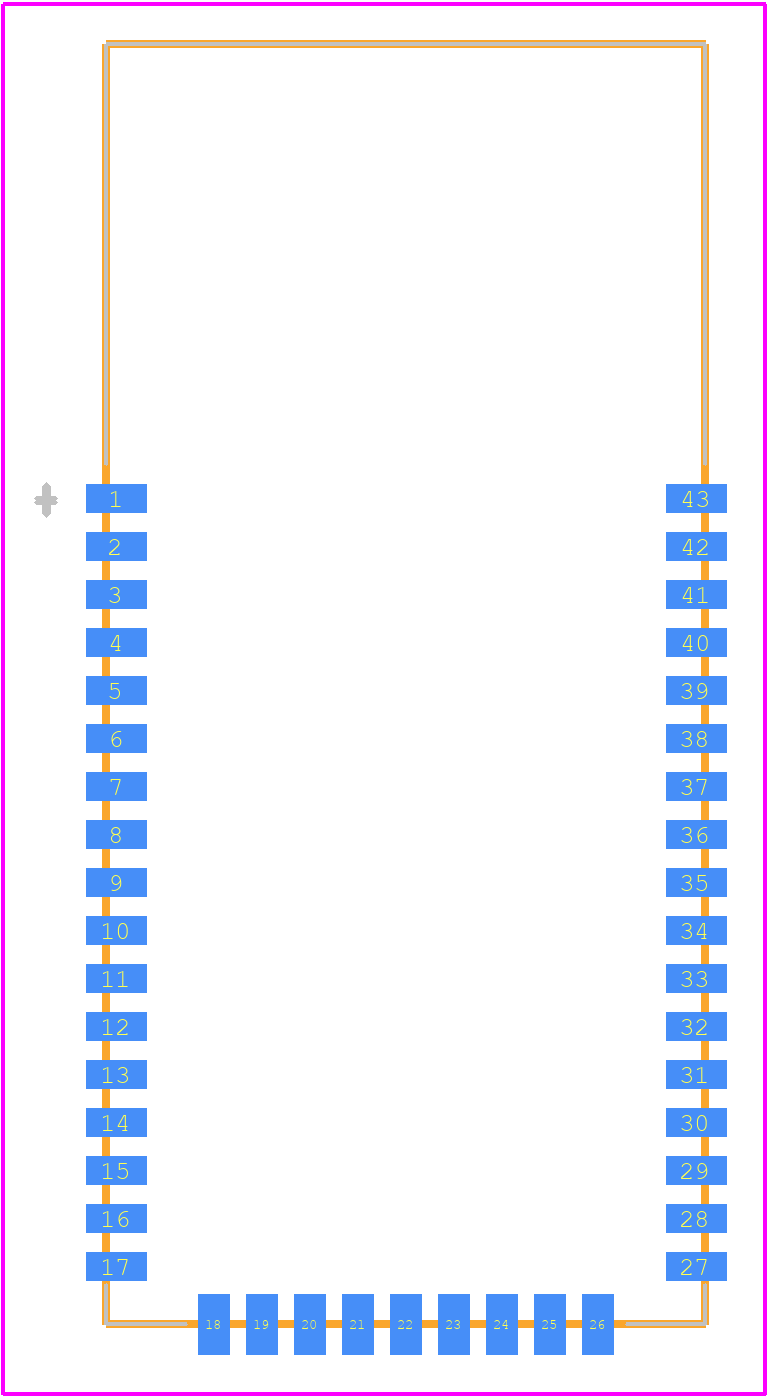

BM64SPKS1MC1-0001AA - Microchip PCB footprint - Other - Other - BM64SPKS1MC1-0001AA-1
click to zoom
3D Models
BM64SPKS1MC1-0001AA - Microchip - 3D model - Other - BM64SPKS1MC1-0001AA-1
click to zoom

BM64SPKS1MC1-0001AA Details

  • Manufacturer Part Number:

    BM64SPKS1MC1-0001AA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-43

  • Pin Count:

    43

  • Manufacturer Package Code:

    MODULE-43

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    R-XXMA-N43

  • Length:

    32 mm

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3.2 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BM64SPKS1MC1-0001AA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a shielded cable for the SPI interface, and consider adding a common-mode choke or ferrite bead to the power supply lines to reduce electromagnetic interference (EMI).
  • The BM64SPKS1MC1-0001AA is rated for operation from -40°C to +85°C, but the actual operating temperature range may vary depending on the specific application and environmental conditions.
  • Use a logic analyzer or oscilloscope to capture the SPI signals and verify that they are within the specified timing and voltage ranges. Check the power supply voltage and decoupling capacitors to ensure they are within the recommended specifications.
  • The BM64SPKS1MC1-0001AA is not certified for use in safety-critical applications. You should consult with Microchip Technology Inc. or a qualified safety expert to determine the suitability of the device for your specific application.
