BM64SPKS1MC1-0003AA - Microchip

Description: Bluetooth Modules (802.15.1) Bluetooth 5 Stereo Audio/Low Energy with Flash, I2S, Class-1, with shield, PCB antenna

Download BM64SPKS1MC1-0003AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

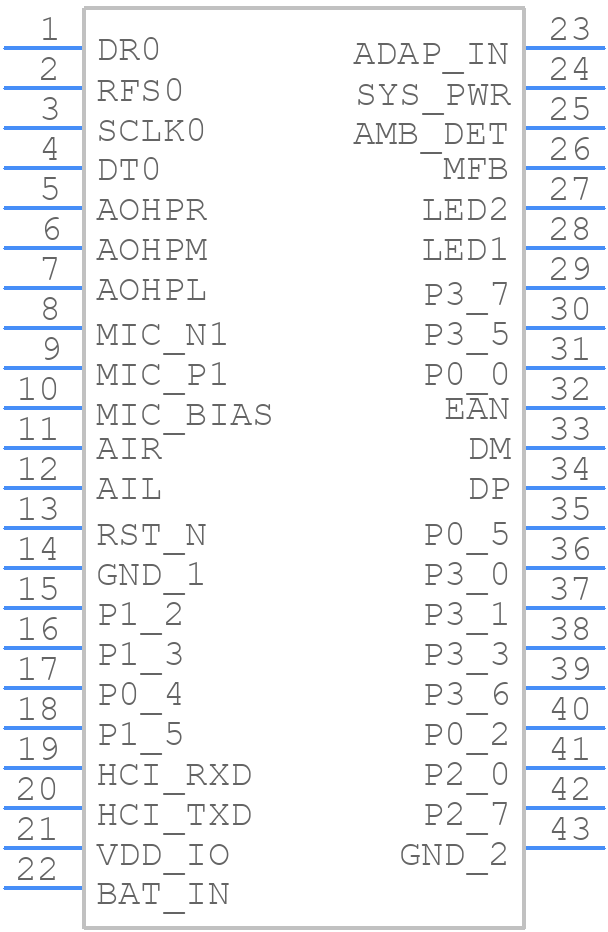

BM64SPKS1MC1-0003AA - Microchip - PCB symbol
click to zoom
PCB Footprints

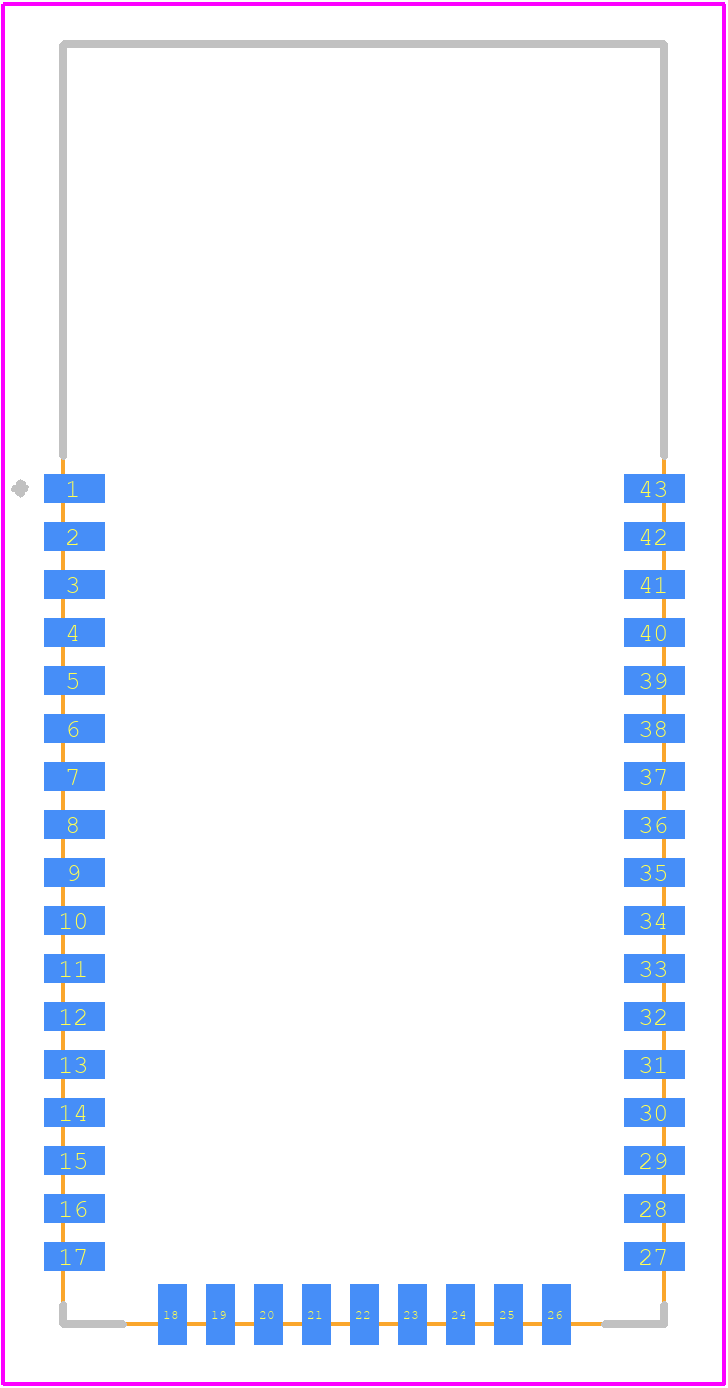

BM64SPKS1MC1-0003AA - Microchip PCB footprint - Other - Other - BM64SPKS1MC1-0003AA-2
click to zoom
3D Models
BM64SPKS1MC1-0003AA - Microchip - 3D model - Other - BM64SPKS1MC1-0003AA-2
click to zoom

BM64SPKS1MC1-0003AA Details

  • Manufacturer Part Number:

    BM64SPKS1MC1-0003AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-43

  • Pin Count:

    43

  • Manufacturer Package Code:

    MODULE-43

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N43

  • JESD-609 Code:

    e4

  • Length:

    32 mm

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3.2 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BM64SPKS1MC1-0003AA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a shielded cable for the RF interface, and ensure that the device is properly grounded. Implement error correction mechanisms, such as checksums or CRC, to detect and correct errors. Consider using a repeater or a relay node to extend the communication range.
  • The maximum transmit power of the BM64SPKS1MC1-0003AA is +20 dBm. You can adjust the transmit power by using the PA_BOOST register to set the power amplifier gain. However, be aware that increasing the transmit power may reduce the device's battery life.
  • Use encryption algorithms, such as AES, to encrypt the data before transmission. Implement secure key exchange mechanisms, such as Elliptic Curve Cryptography (ECC), to securely exchange encryption keys. Consider using secure protocols, such as TLS or SSL, to ensure end-to-end encryption.
  • The typical current consumption of the BM64SPKS1MC1-0003AA is around 15 mA in transmit mode and 5 mA in receive mode. To optimize current consumption, use the device's low-power modes, such as sleep mode or standby mode, when not transmitting or receiving data. Also, consider using a low-power microcontroller and optimizing the system's power management.
