BM64SPKS1MC2-0001AA - Microchip

Description: BT4.2 Stereo Audio with BLE, I2S, Flash,

Download BM64SPKS1MC2-0001AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

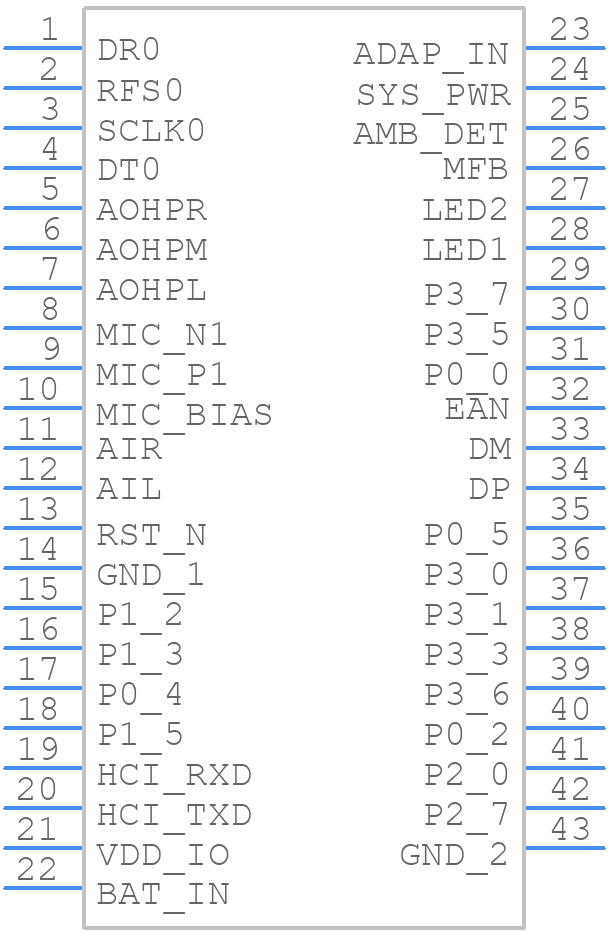

BM64SPKS1MC2-0001AA - Microchip - PCB symbol
click to zoom
PCB Footprints

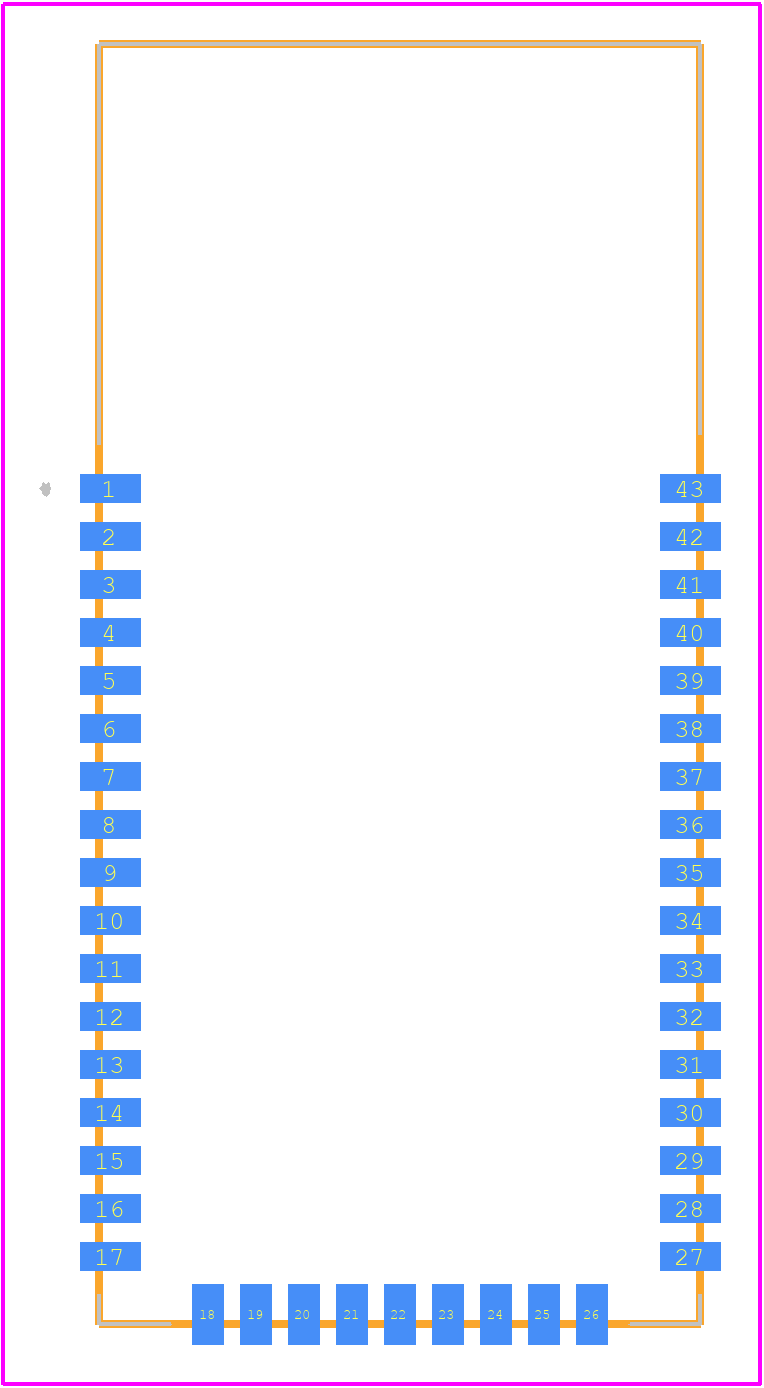

BM64SPKS1MC2-0001AA - Microchip PCB footprint - Other - Other - BM64SPKS1MC2-0001AA-1
click to zoom
3D Models
BM64SPKS1MC2-0001AA - Microchip - 3D model - Other - BM64SPKS1MC2-0001AA-1
click to zoom

BM64SPKS1MC2-0001AA Details

  • Manufacturer Part Number:

    BM64SPKS1MC2-0001AA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-43

  • Pin Count:

    43

  • Manufacturer Package Code:

    MODULE-43

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N43

  • Length:

    32 mm

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3.2 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

BM64SPKS1MC2-0001AA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a common ground point and ensure that the signal lines are properly terminated.
  • The device has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Also, avoid overheating the device during soldering and rework.
  • Use a logic analyzer or oscilloscope to debug the issue. Check the power supply voltage, clock frequency, and data transmission rates. Also, consult the datasheet and application notes for troubleshooting guidelines.
  • The device has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded.
