BM70BLE01FC2-0B05BA - Microchip

Description: Bluetooth Modules - 802.15.1 Bluetooth BLE Module, Unshielded, No Antenna, 12x15mm, Industrial Temp

Download BM70BLE01FC2-0B05BA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

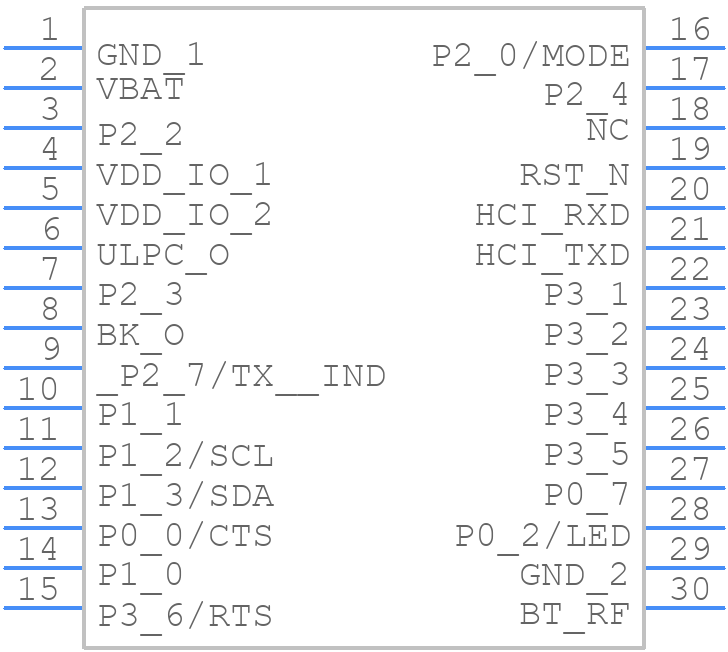

Symbol
BM70BLE01FC2-0B05BA - Microchip - PCB symbol
click to zoom

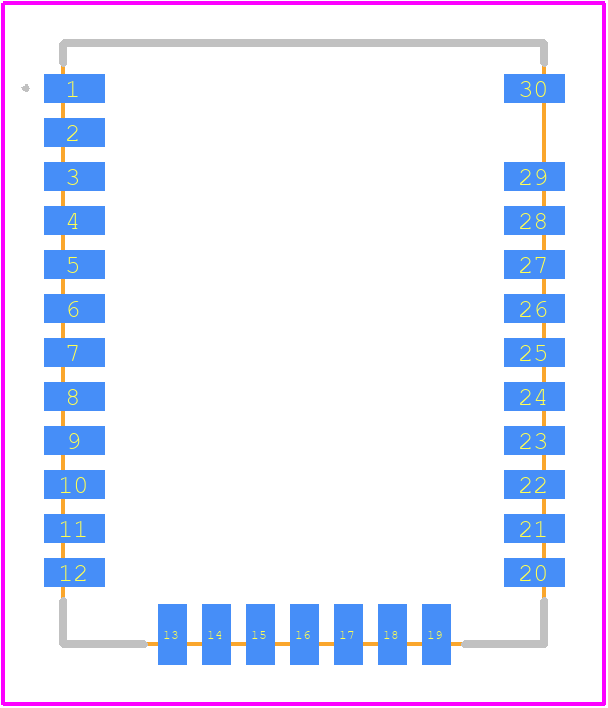

PCB Footprints
BM70BLE01FC2-0B05BA - Microchip PCB footprint - Other - Other - BM70BLE01FC2-0B05BA-2
click to zoom
3D Models
BM70BLE01FC2-0B05BA - Microchip - 3D model - Other - BM70BLE01FC2-0B05BA-2
click to zoom

BM70BLE01FC2-0B05BA Details

  • Manufacturer Part Number:

    BM70BLE01FC2-0B05BA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    MODULE-30

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    SEATED HGT-NOM

  • JESD-30 Code:

    R-XXMA-N30

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

BM70BLE01FC2-0B05BA Frequently Asked Questions (FAQs)

  • Microchip recommends using a 15mm x 15mm ceramic antenna or a 25mm x 10mm PCB antenna with a 50Ω impedance. The antenna should be placed at least 10mm away from any metal components or shields.
  • To achieve low power consumption, set the module to sleep mode using the HCI command 'hci_write_sleep_mode' and configure the sleep timer using 'hci_write_sleep_timer'. Additionally, disable unnecessary peripherals and adjust the transmission power to the minimum required level.
  • The maximum range of the BM70BLE01FC2-0B05BA module is approximately 100 meters (330 feet) in open air, but this can vary depending on the environment, obstacles, and antenna design.
  • Yes, the BM70BLE01FC2-0B05BA module is compatible with most microcontrollers that support UART or SPI interfaces. However, you may need to write custom firmware or use a third-party library to communicate with the module.
  • Firmware updates can be performed using the Microchip BM70BLE01FC2-0B05BA SDK and a UART or SPI interface. Follow the instructions in the SDK documentation and ensure that the module is properly connected and configured before attempting an update.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM70BLE01FC2-0B05BA Overview

Use the download button to access the BM70BLE01FC2-0B05BA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM70B, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
