BM71BLE01FC2-0B04AA - Microchip

Description: MICROCHIP - BM71BLE01FC2-0B04AA - BLUETOOTH MODULE, V4.2, 2.402-2.48GHZ

Download BM71BLE01FC2-0B04AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

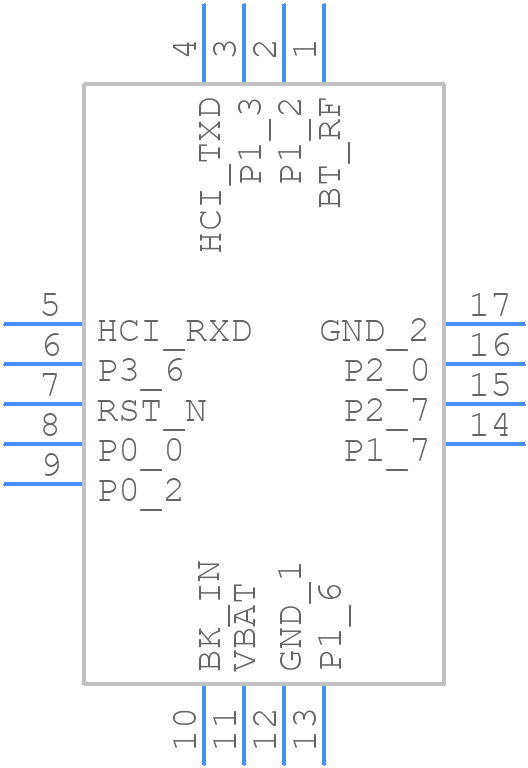

BM71BLE01FC2-0B04AA - Microchip - PCB symbol
click to zoom
PCB Footprints
BM71BLE01FC2-0B04AA - Microchip PCB footprint - Other - Other - BM71BLE01FC2-0002AA-3
click to zoom
3D Models
BM71BLE01FC2-0B04AA - Microchip - 3D model - Other - BM71BLE01FC2-0002AA-3
click to zoom

BM71BLE01FC2-0B04AA Details

  • Manufacturer Part Number:

    BM71BLE01FC2-0B04AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    MODULE-17

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    SEATED HGT-NOM

  • JESD-30 Code:

    R-XXMA-N17

  • Length:

    8 mm

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC
