BMA253 - BOSCH

Description: Accelerometers Digital, Triaxial Acceleration Sensor

Download BMA253 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

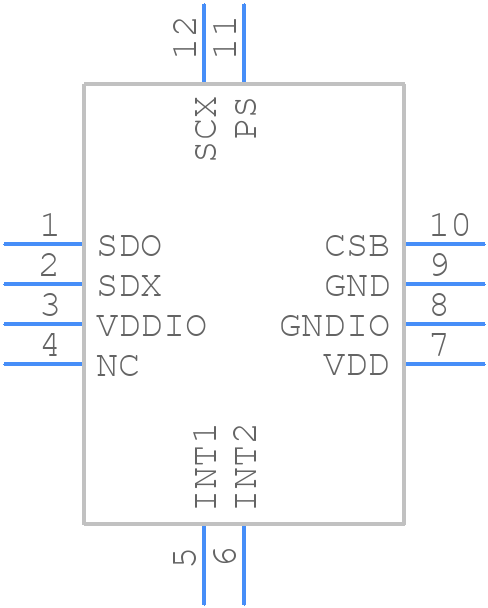

BMA253 - BOSCH - PCB symbol
click to zoom
PCB Footprints
BMA253 - BOSCH PCB footprint - Other - Other - Bosch_LGA-12
click to zoom
3D Models
BMA253 - BOSCH - 3D model - Other - Bosch_LGA-12
click to zoom

BMA253 Details

  • Manufacturer Part Number:

    BMA253

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LGA-12

  • Country Of Origin:

    South Korea

  • Manufacturer:

    Bosch Sensortec

  • YTEOL:

    3

  • Body Breadth:

    2 mm

  • Body Height:

    0.82 mm

  • Body Length or Diameter:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.48-1.92V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC12,.07SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

BMA253 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VDD (1.71V to 3.6V) and then apply VLOGIC (1.71V to 3.6V). This ensures proper initialization of the device.
  • To configure the BMA253 for low-power mode, set the LP_MODE bit in the POWER_CTRL register (0x0F) to '1'. This reduces the current consumption to approximately 10 μA.
  • The INT1 and INT2 pins are interrupt pins that can be configured to trigger on specific events, such as exceeding a certain acceleration threshold or detecting a tap/double tap. These pins can be used to wake up a microcontroller from sleep mode or to trigger an interrupt.
  • The BMA253 does not require calibration. It is a self-testable and self-calibrating accelerometer. However, it is recommended to perform a self-test after power-on to ensure the device is functioning correctly.
  • The BMA253 can measure accelerations up to ±16g in the x, y, and z axes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BMA253 Overview

Use the download button to access the BMA253 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMA25, or try a keyword search, such as Other Sensors/Transducers
