The recommended PCB layout and placement for the BMA456 can be found in the Bosch Sensortec application note AN011, which provides guidelines for optimal placement, routing, and decoupling to minimize noise and ensure reliable operation.
The BMA456 does not require calibration in the classical sense, as it is a self-contained sensor with internal calibration. However, it is recommended to perform a one-time initialization procedure to set the sensor's internal parameters, as described in the datasheet.
The BMA456 is specified to operate from -40°C to 85°C, but it can tolerate short-term excursions up to 105°C. However, prolonged exposure to temperatures above 85°C may affect the sensor's accuracy and long-term reliability.
Yes, the BMA456 is designed to operate in high-vibration environments, with a specified vibration tolerance of up to 10g. However, it's essential to ensure proper mounting and mechanical isolation to prevent damage to the sensor or the PCB.
The BMA456 provides interrupt signals for data ready, FIFO full, and error conditions. It's essential to properly configure the interrupt pins and handle the interrupts in the host microcontroller to ensure reliable data transfer and error handling.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMA456 Overview

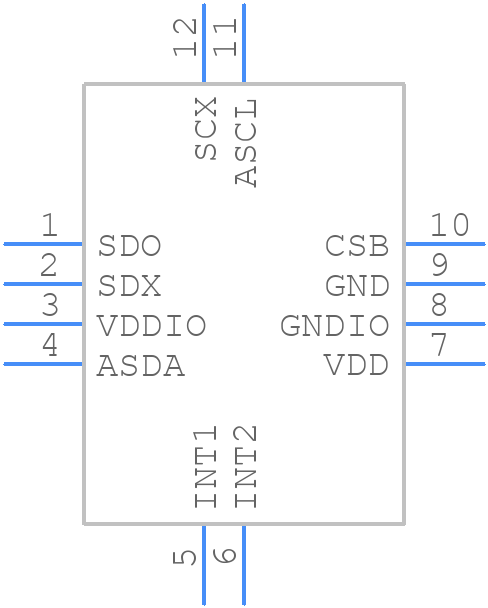

Use the download button to access the BMA456 schematic symbol, PCB footprint, and 3D model.
