Description:Multiple Function Sensor Modules BME690 is the gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors.
Bosch Sensortec provides a recommended PCB layout and placement guide in their application note AN001 - Layout Recommendations for Bosch Sensortec Environmental Sensors. It's essential to follow these guidelines to ensure optimal performance and minimize noise interference.
The BME690 has an internal calibration mechanism, but for high-accuracy measurements, additional calibration is required. Bosch Sensortec provides a calibration guide in their application note AN002 - Calibration of Bosch Sensortec Environmental Sensors. This involves performing a series of measurements at different temperatures and pressures to create a custom calibration profile.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the BME690 can be operated at temperatures up to 105°C for short periods (e.g., during reflow soldering). However, prolonged exposure to temperatures above 85°C may affect the sensor's accuracy and long-term reliability.
The BME690 is designed to operate in a wide range of humidity levels, but it's not suitable for immersion in water or exposure to high-pressure water jets. If you need to use the sensor in a humid or wet environment, ensure proper sealing and protection of the device, and follow the guidelines in the datasheet and application notes.
The BME690 is sensitive to noise, especially on the power supply lines. To minimize noise, use a dedicated power supply line for the sensor, add decoupling capacitors, and ensure a solid ground plane on the PCB. Additionally, keep the sensor away from high-frequency components and use shielding if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BME690 Overview

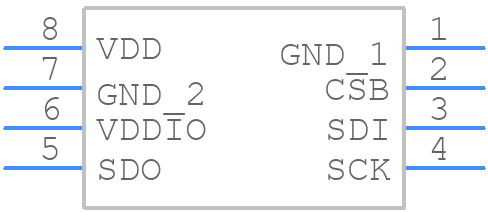

Use the download button to access the BME690 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BME69,
or try a keyword search, such as Other Sensors/Transducers
