BMF055 - BOSCH

Description: IMUs - Inertial Measurement Units Absolute Orientation Empty 9-Axis Sensor

Download BMF055 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

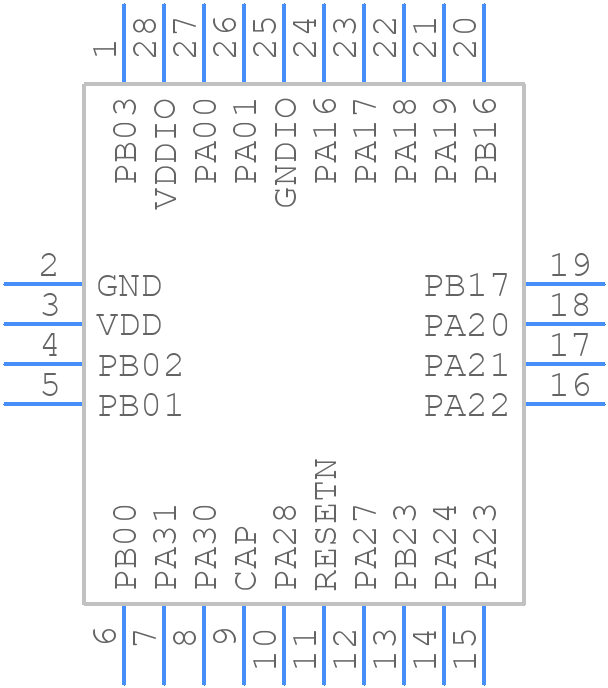

BMF055 - BOSCH - PCB symbol
click to zoom
PCB Footprints
BMF055 - BOSCH PCB footprint - Other - Other - BMF055-2
click to zoom
3D Models
BMF055 - BOSCH - 3D model - Other - BMF055-2
click to zoom

BMF055 Details

  • Manufacturer Part Number:

    BMF055

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-30

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Bosch Sensortec

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    X-XXSS-X30

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    SPECIAL SHAPE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

BMF055 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first power on the VDDIO pin, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • For optimal performance, it is recommended to use the default settings for the accelerometer and gyroscope, and to adjust the bandwidth and range settings based on the specific application requirements.
  • The maximum sampling rate of the BMF055 is 1600 Hz for the accelerometer and 3200 Hz for the gyroscope.
  • The BMF055 has an internal temperature sensor that can be used to compensate for temperature effects. The temperature data can be read from the sensor and used to correct the accelerometer and gyroscope data.
  • The FIFO buffer is used to store sensor data temporarily, allowing for more efficient data transfer and reducing the load on the host processor.
