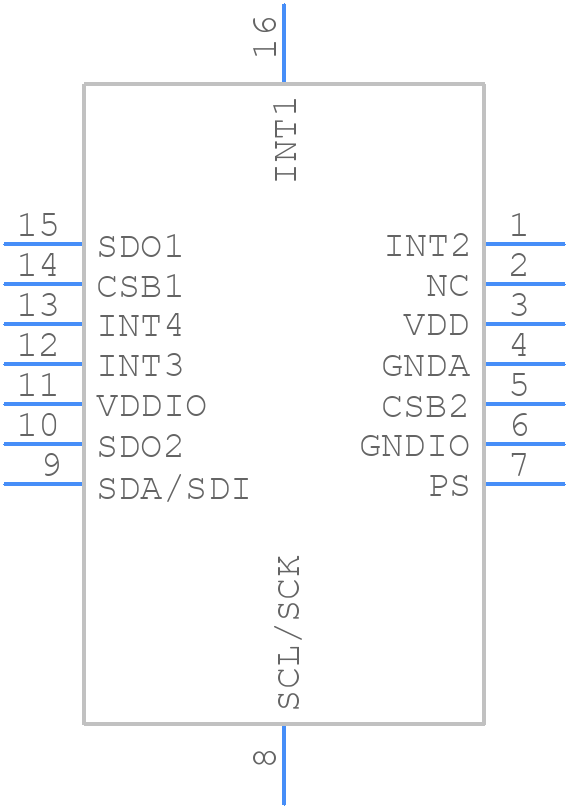

BMI085 - BOSCH

BMI085 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the BMI085?
  The recommended PCB layout for the BMI085 is a 4-layer PCB with a dedicated ground plane and a separate power plane. The sensor should be placed on the top layer, and the decoupling capacitors should be placed as close as possible to the sensor.
• How do I calibrate the BMI085?
  The BMI085 does not require calibration. It is a self-contained sensor that provides calibrated acceleration and angular rate data. However, it is recommended to perform a one-time initialization procedure to set the sensor's internal parameters.
• What is the maximum operating temperature range for the BMI085?
  The BMI085 can operate in a temperature range of -40°C to 85°C. However, the sensor's accuracy and performance may degrade at extreme temperatures.
• Can I use the BMI085 in a vacuum or high-altitude applications?
  The BMI085 is not designed for use in vacuum or high-altitude applications. The sensor's performance may be affected by changes in air pressure and temperature.
• How do I handle the BMI085's interrupt signals?
  The BMI085 provides interrupt signals for events such as data ready, FIFO overflow, and sensor errors. The interrupt signals should be connected to a microcontroller or other processing unit for proper handling and processing.
